Brake Fluid Pump Relay: Testing and Inspection

Motor Relay Inspection

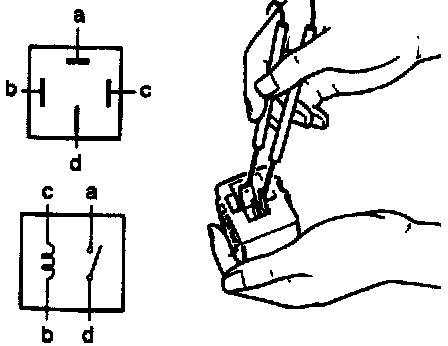

1. Using an ohmmeter, check continuity of the relay terminals.

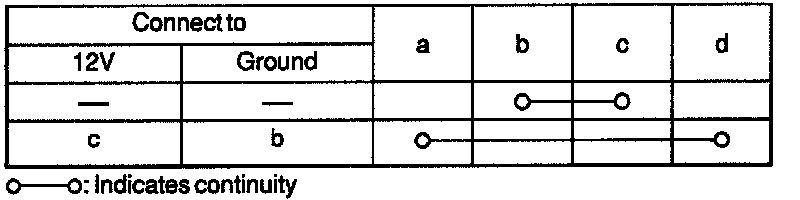

2. If continuity is not as specified, replace the motor relay.
