Mazda
>>
1990
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Vacuum Hose Routing
Vacuum Hose Routing

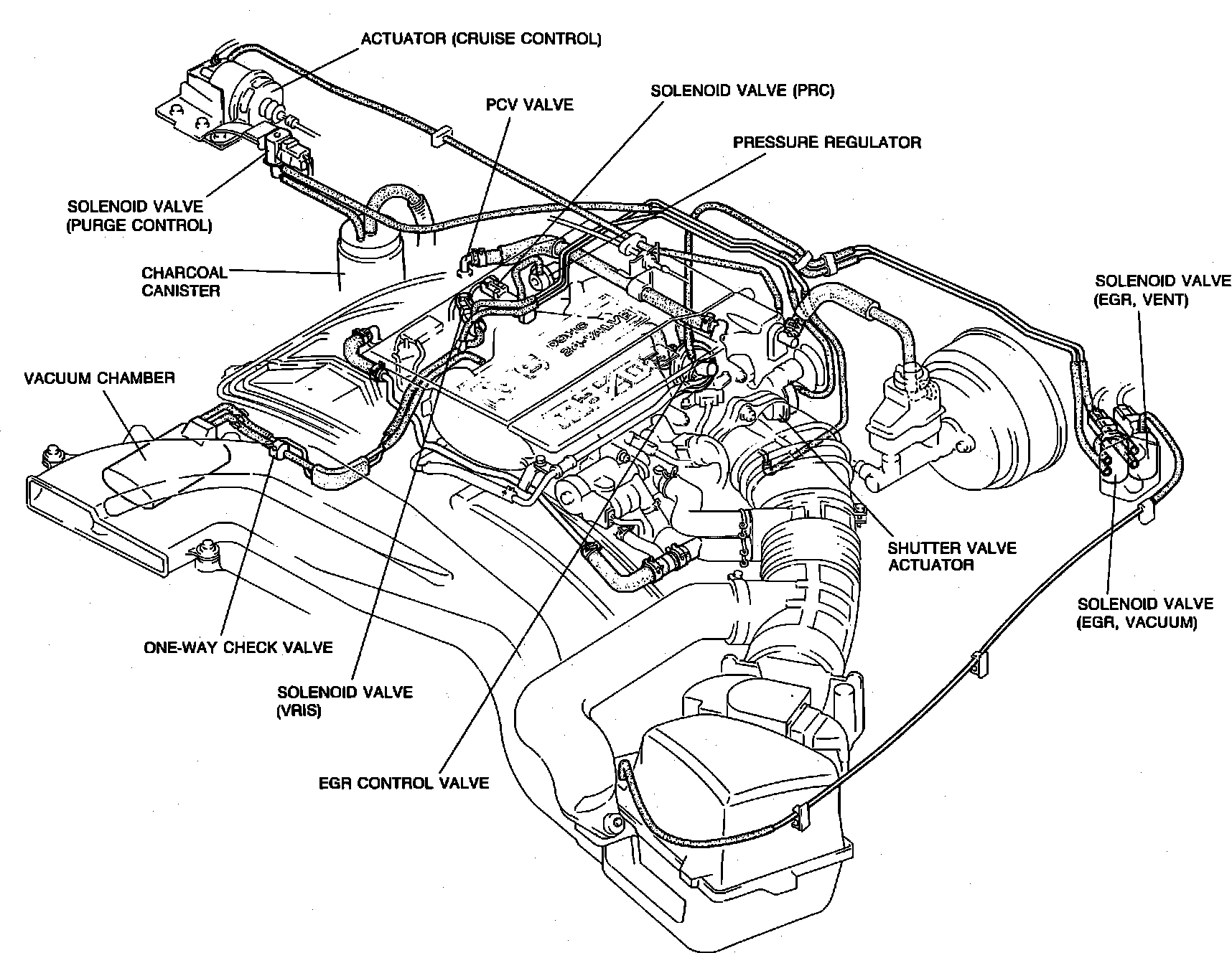

Fig. 106 Vacuum Routing:
