Brake Fluid Solenoid Valve Relay: Testing and Inspection

Valve Relay Inspection

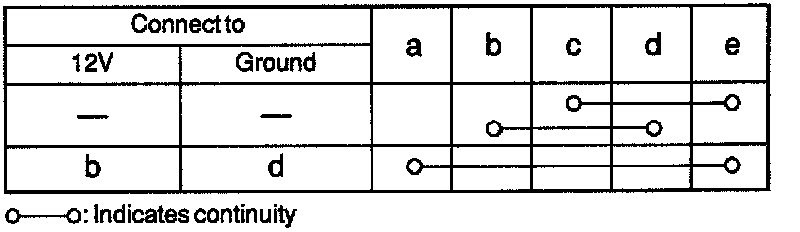

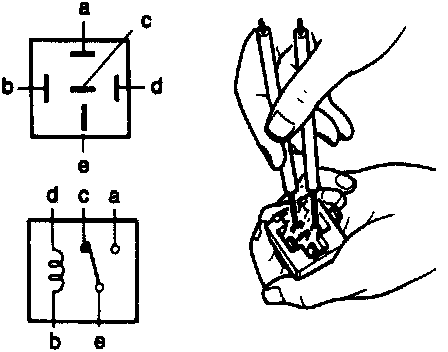

1. Using an ohmmeter, check continuity of the relay terminals.
2. If continuity is not as specified, replace the valve relay.
