Solenoid Valves

Inspection of Resistance





1. Disconnect the negative battery cable.
2. Disconnect the solenoid valve connector.

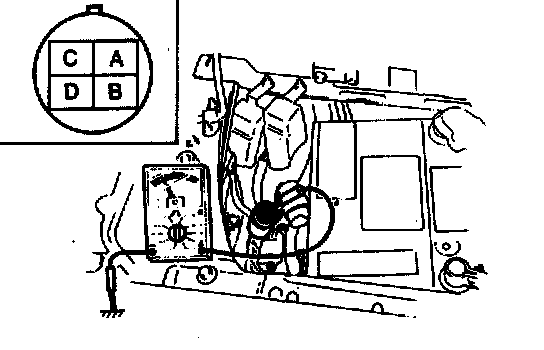

3. Measure the resistance of the terminals. If necessary, replace the solenoid valve.

Resistance: 13-27 Ohms

Note:
- 1-2 solenoid valve: A
- 2-3 solenoid valve: B
- 3-4 solenoId valve : C
- Lockup solenoid valve: D
