Pinion Gap Check

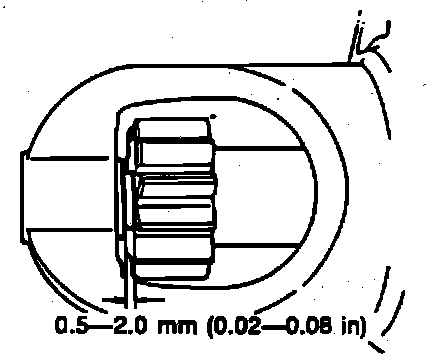

Fig. 5 Pinion Gap Check:

1. While the pinion is pulled out, check pinion gap, Fig. 5.
2. Pinion gap should be between .02-.08 inch. Adjust pinion gap by placing an adjustment washer between drive housing front cover and magnetic switch.
