Home >> Mazda >> 1990 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Testing and Inspection

Blower Motor Resistor: Testing and Inspection








Inspection

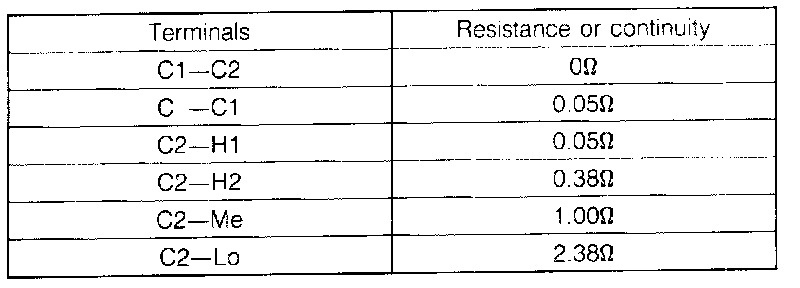

Check the resistance or continuity between terminals with an ohmmeter.
