Brake Proportioning/Combination Valve: Testing and Inspection

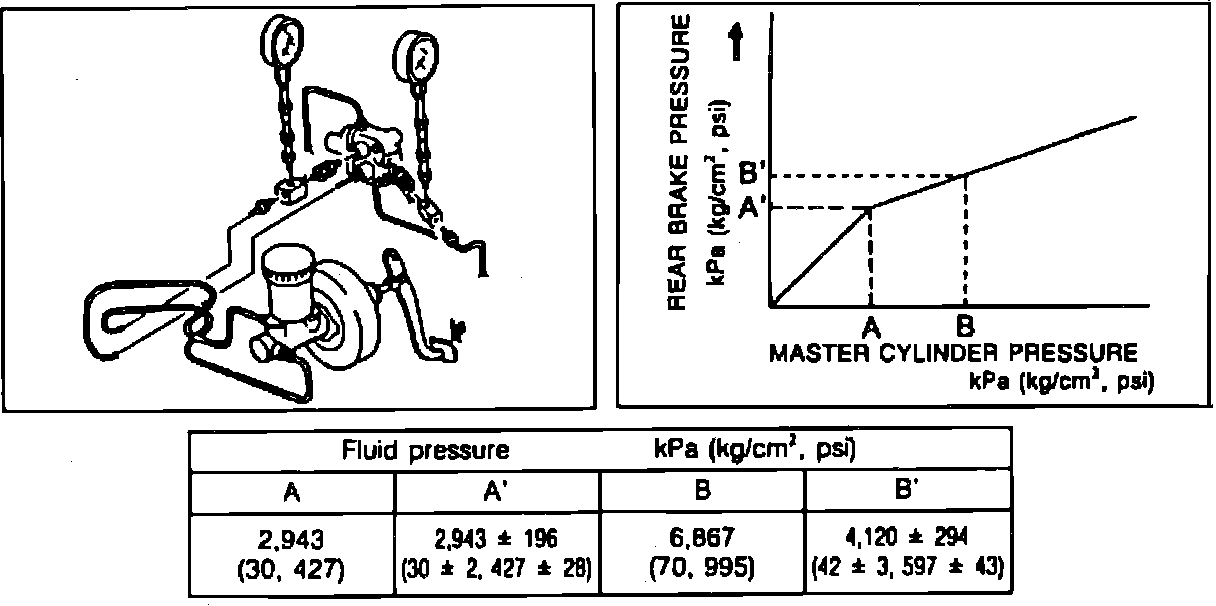

Fig. 11 PBV Pressure Chart. 626/MX-6:

Connect pressure tester as shown. If pressure is different than the chart that coincides with the figure, then replace valve, Fig. 11.
