Relay Box

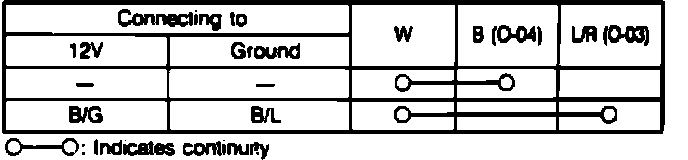

Fig. 60 Relay Box Continuity Specification.:

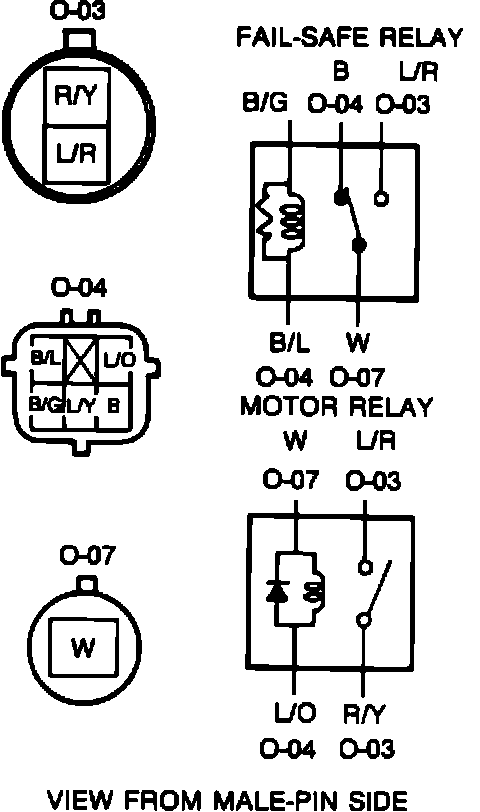

Fig. 61 ABS Connector Terminal Identification.:

1. Check relay continuity as outlined in Fig. 60. Replace as needed.
2. Check that resistance between terminal wire W and LY changes when the positive and negative test leads are reversed, Fig. 61. Replace as necessary.
