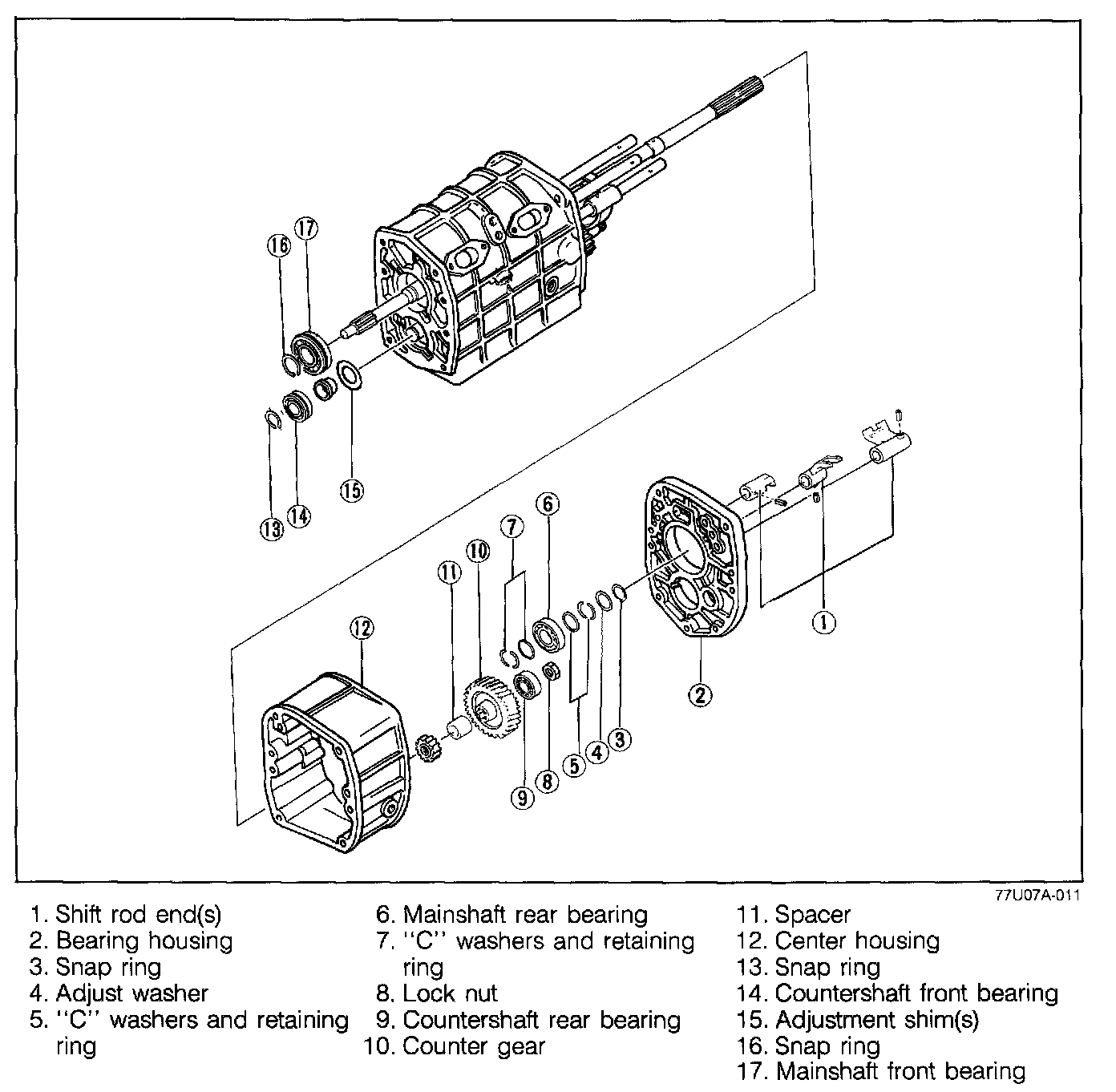

Transmission Case Components

HOUSING PARTS




Shift Rod Ends

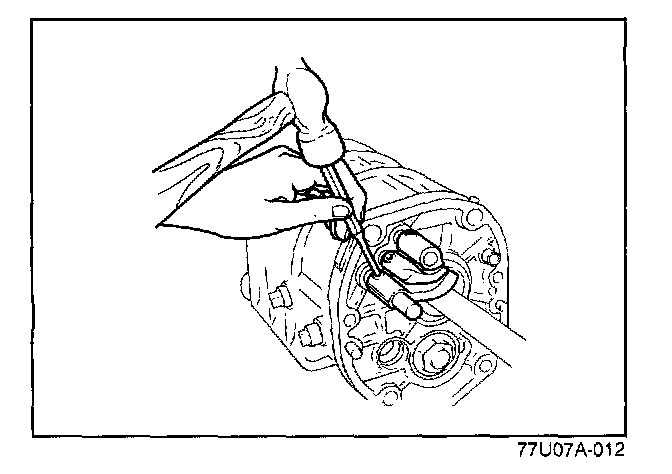

Remove the spring pins and shift rod ends.




Bearing Housing

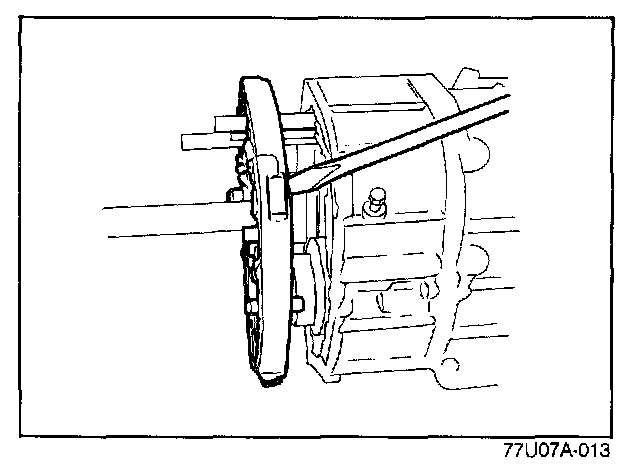

Gently pry the bearing housing away from the transmission case with a screwdriver, being careful not to damage the housing or case. Slide the bearing housing off the mainshaft.

Mainshaft Rear Bearing

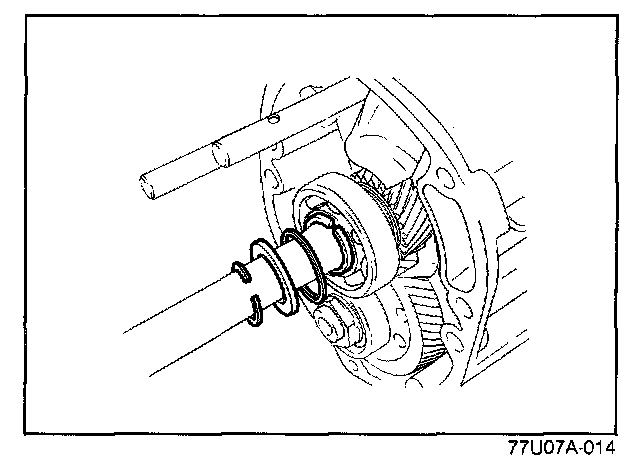

1. Remove the snap ring, washer, retaining ring, and "C" washers.

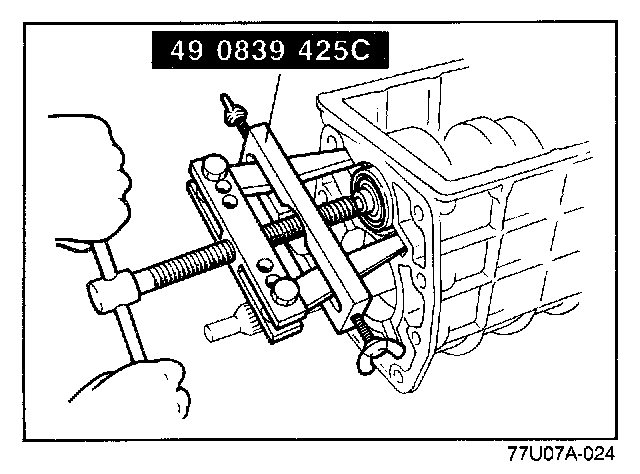

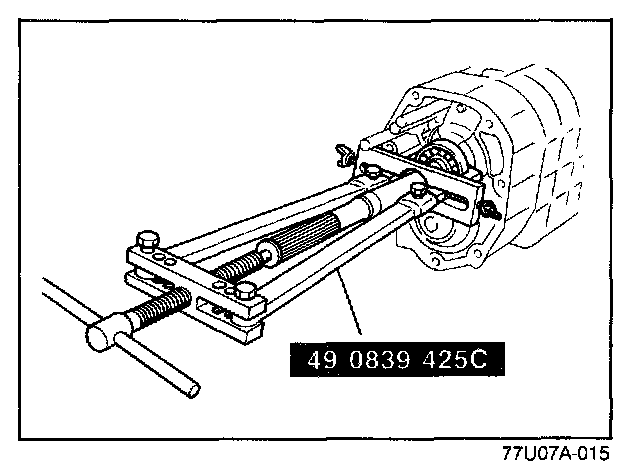

2. Remove the mainshaft rear bearing using bearing puller set (49 0839 425C).

Countershaft Rear Bearing

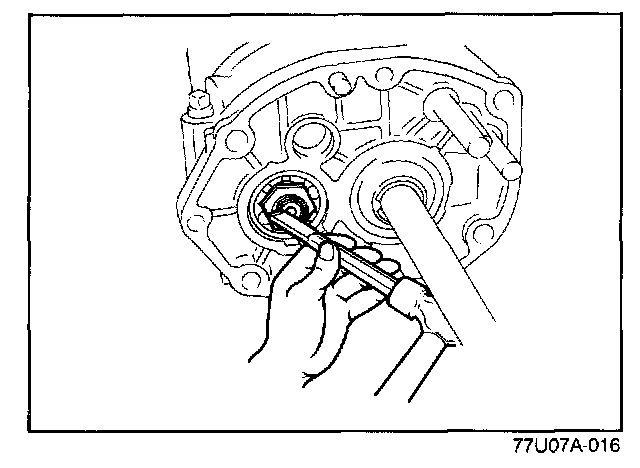

1. Uncrimp the tab of the lock nut.




2. Shift the clutch hub sleeves to first gear and reverse gear to put the gears in the double-engaged condition.
3. Remove the lock nut.

CAUTION: Do not re-use the lock nut.




4. Remove the countershaft bearing using bearing puller set (49 0839 425C).




Counter 5th Gear

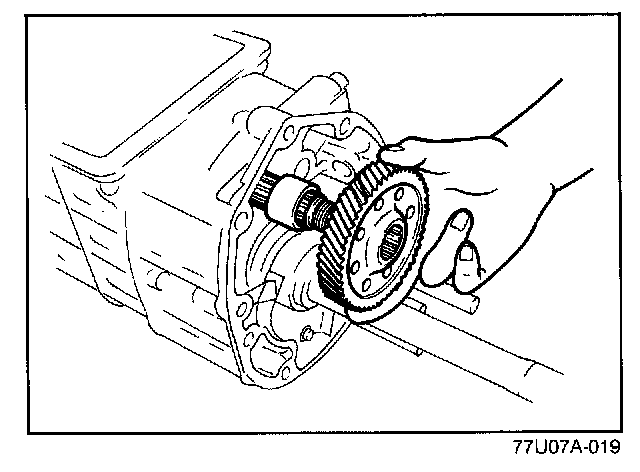

Remove the counter fifth gear and spacer from the rear of the countershaft.




Center Housing
1. Remove the cap screw from center housing.

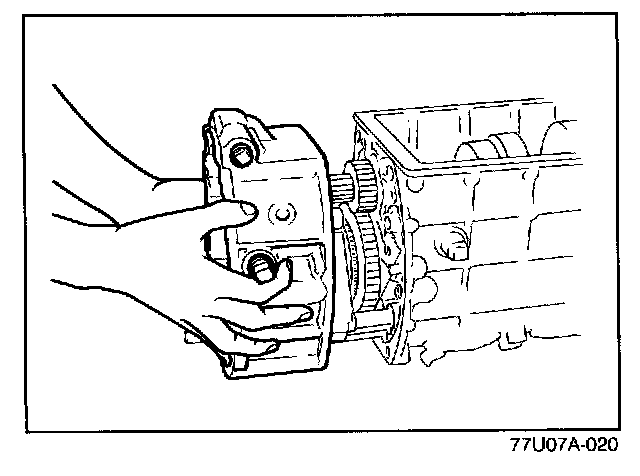

2. Tap the housing with a plastic hammer, if necessary, and remove the center housing.

Mainshaft Front Bearing




1. Remove the snap ring from the main drive shaft.




2. install the synchronizer ring holder (49 F017 101) between the 4th speed synchronizer ring and synchromesh gear on the main drive shaft.

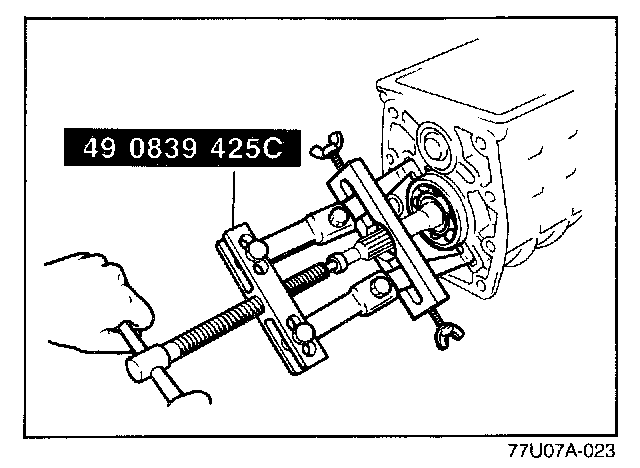

3. Remove the mainshaft front bearing using bearing puller set (49 0839 425C).




Countershaft Front Bearing
1. Remove the snap ring from the front of the countershaft.
2. Remove the countershaft bearing using bearing puller set (49 0839 425C).
