Bell Housing: Service and Repair

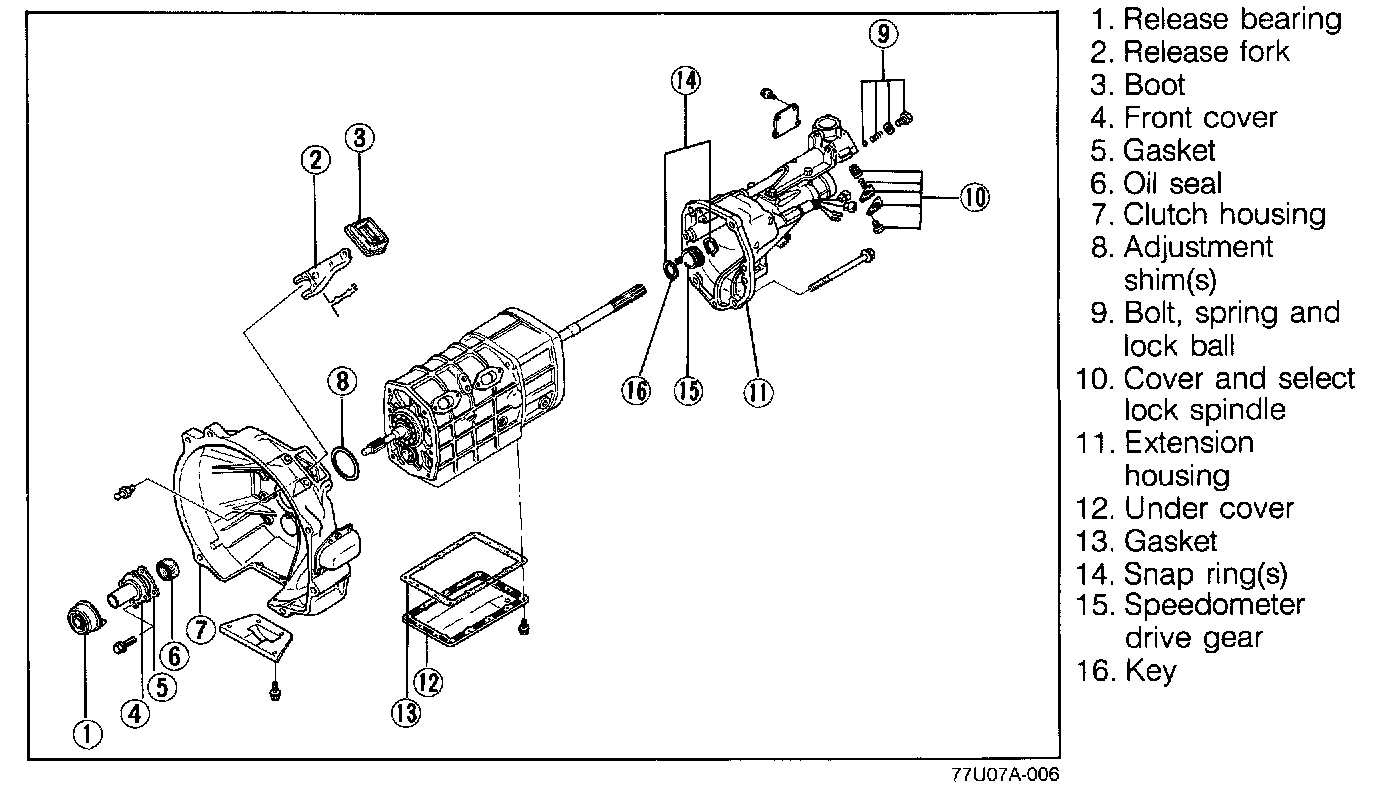

Disassemble in the sequence shown in the image.




CLUTCH HOUSING AND EXTENSION HOUSING

Extension Housing




1. Remove the cap bolt, spring and lock ball.
2. Remove the cover, spring and select lock spindle.
3. Remove the control case cover.




4. Remove the extension housing attaching bolts.

NOTE: Do not remove the change control case.

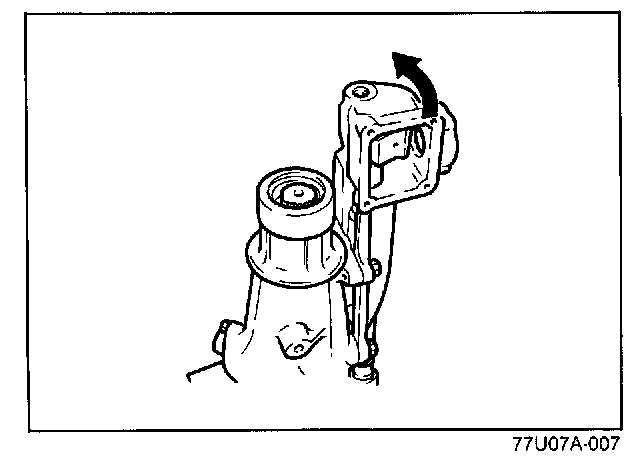

5. Turn the control rod in the direction of the arrow and remove the extension housing.

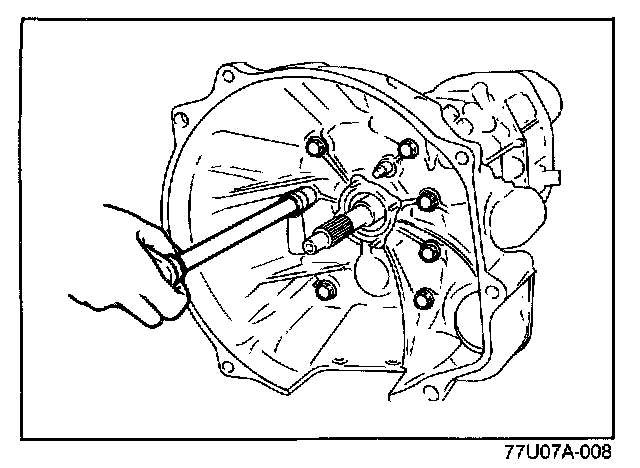

Clutch Housing
Remove the clutch housing.

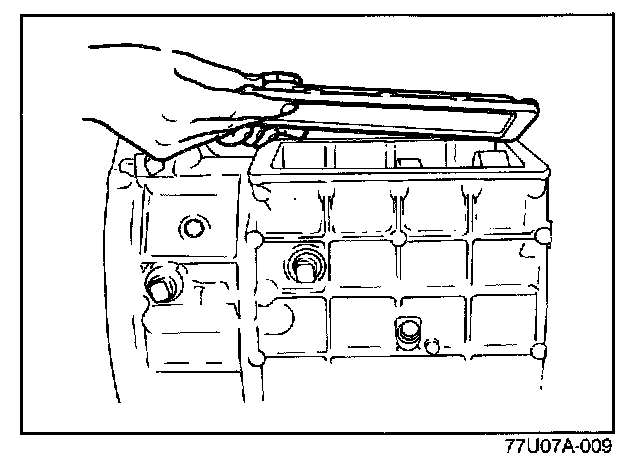

Under Cover
Remove the under cover

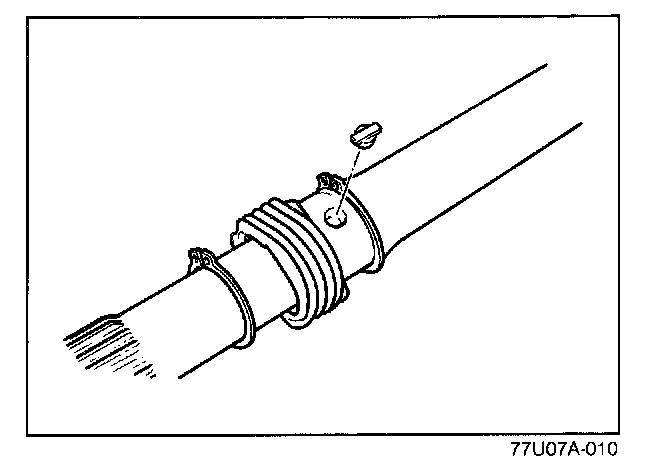

Speedometer Drive Gear
Remove the snap ring, speedometer drive gear, key and snap ring.
