Home
>>
Mazda
>>
1987
>>
RX7 2RTR- 1308cc 1.3L Turbo FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Air Injection Vacuum Control Solenoid Valve
>>
Locations
>>
Switching Solenoid
Switching Solenoid

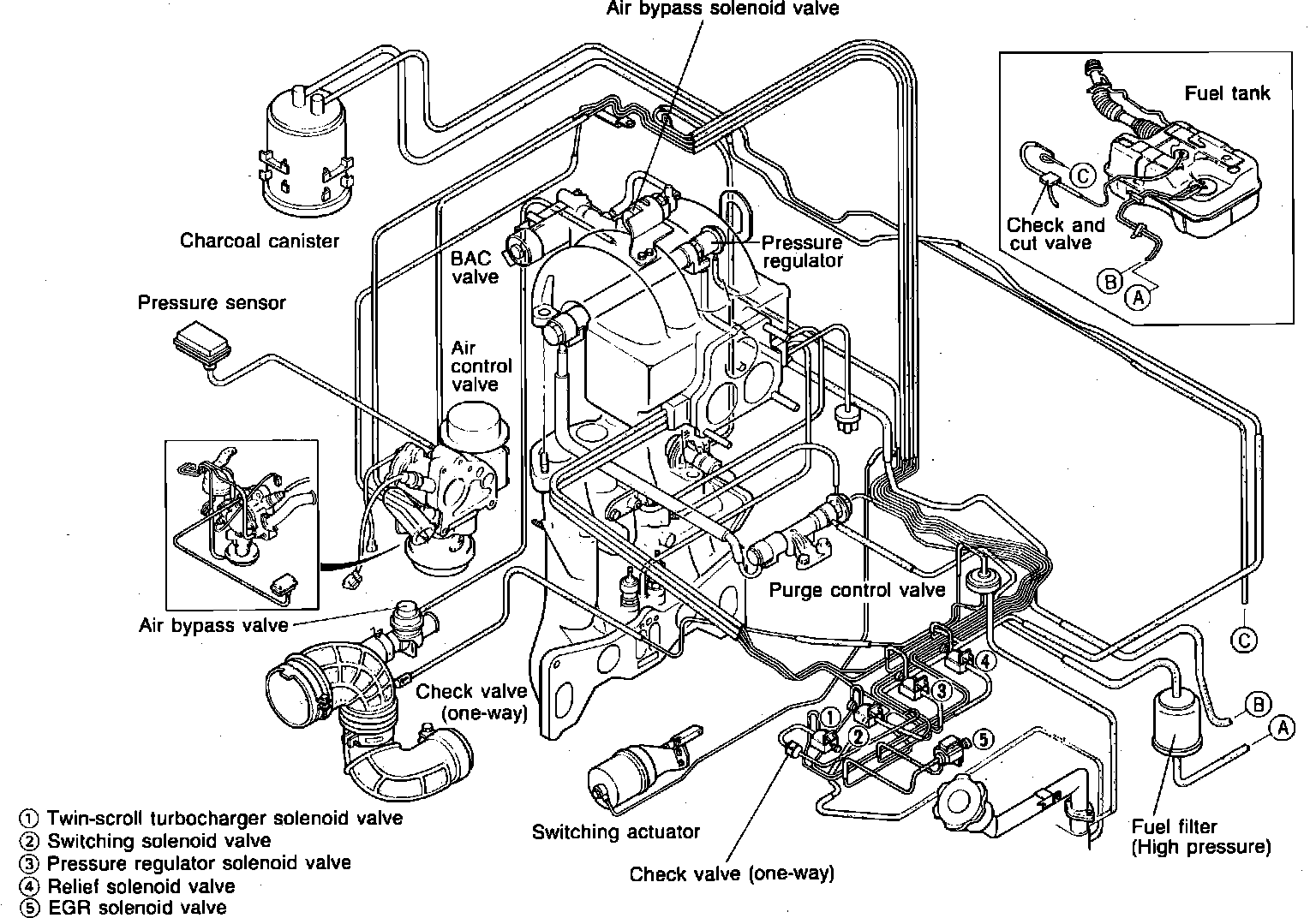

Vacuum operated components.:
See Diagram
Applicable to: RX-7 Turbo
