Mainshaft

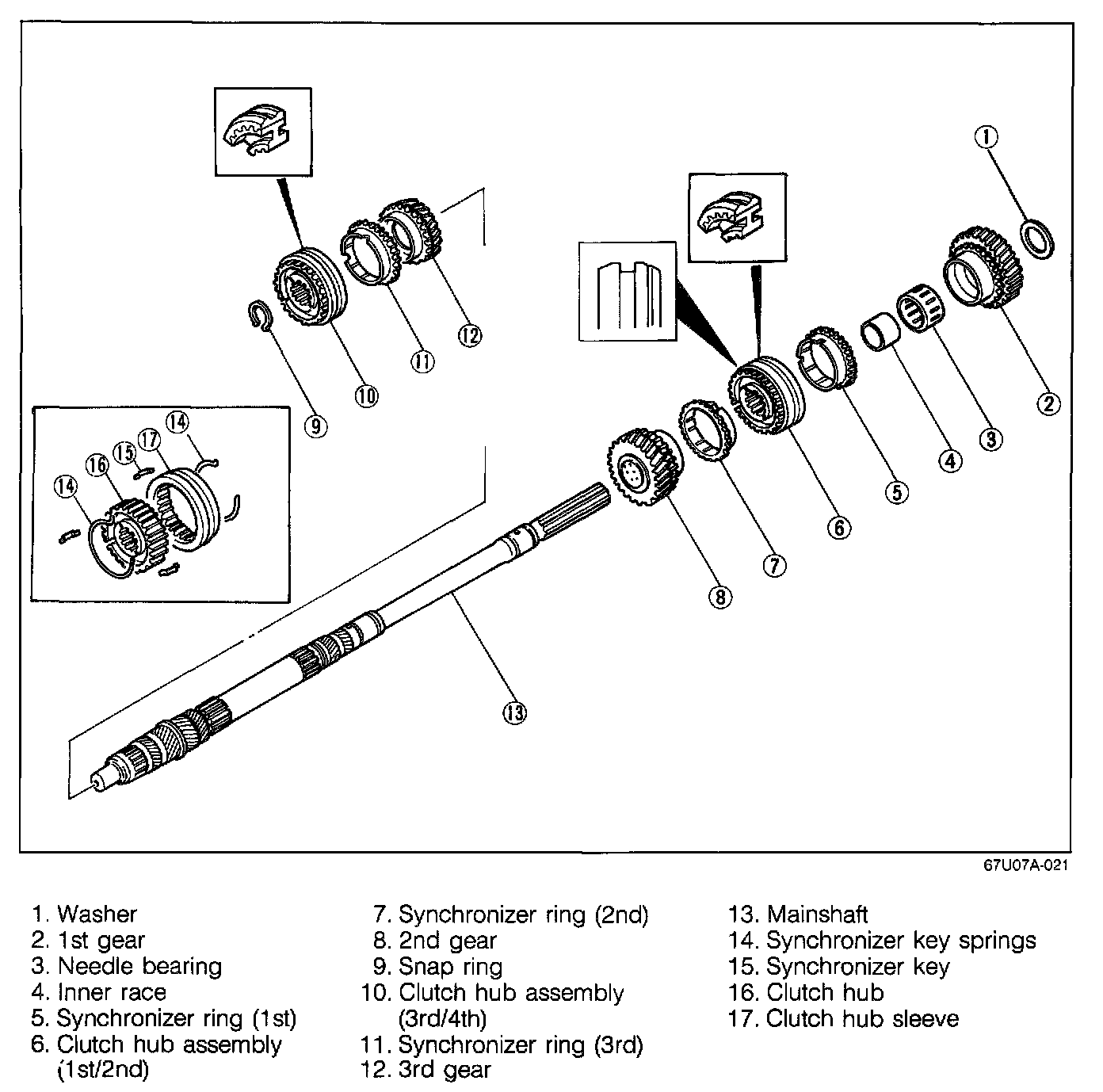

MAINSHAFT




Clutch Hub Assembly

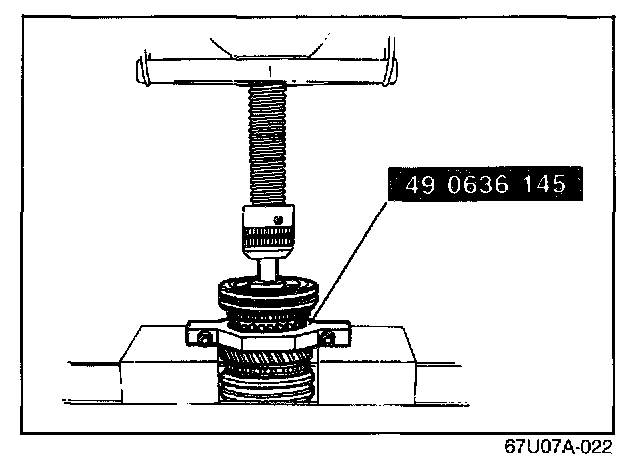

1. Place the pulley boss puller (49 0636 145) between 2nd gear and 3rd gear.
2. Support the mainshaft by hand to prevent if from falling, press the clutch hub assembly.
