Mazda
>>
1987
>>
RX7 2RTR- 1308cc 1.3L FI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

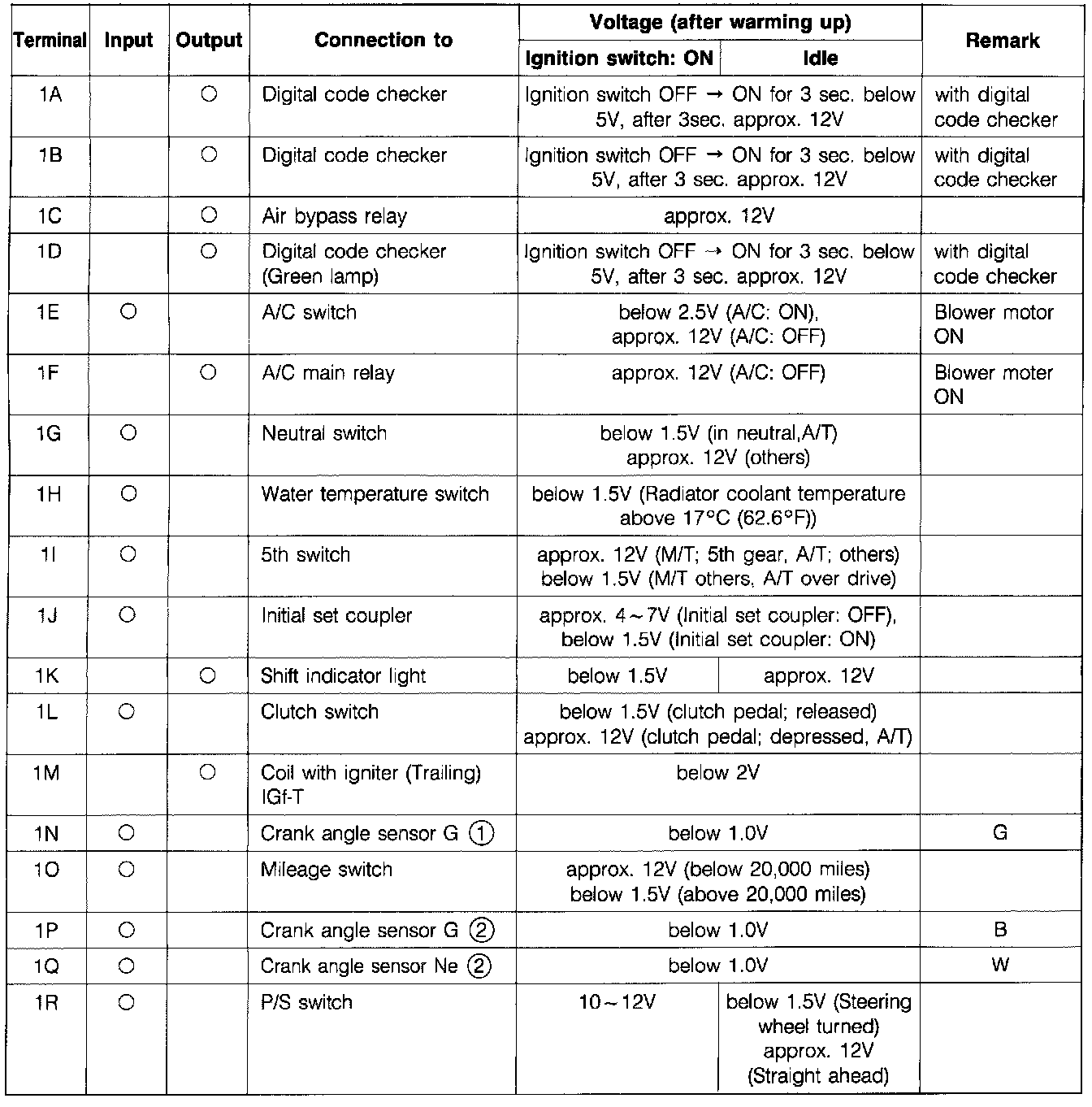

Control Unit Voltage Specification Chart:

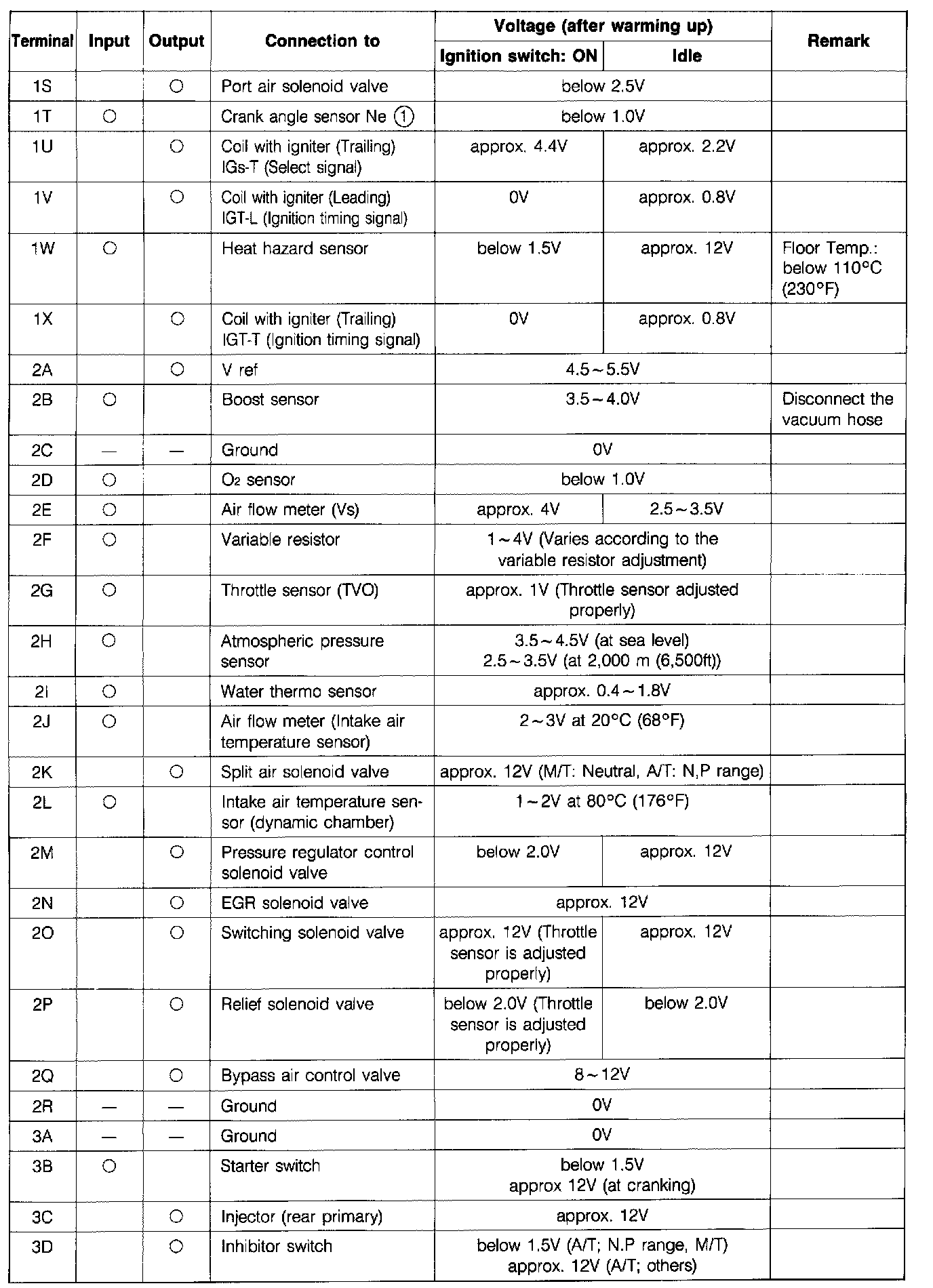

Control Unit Voltage Specification Chart:

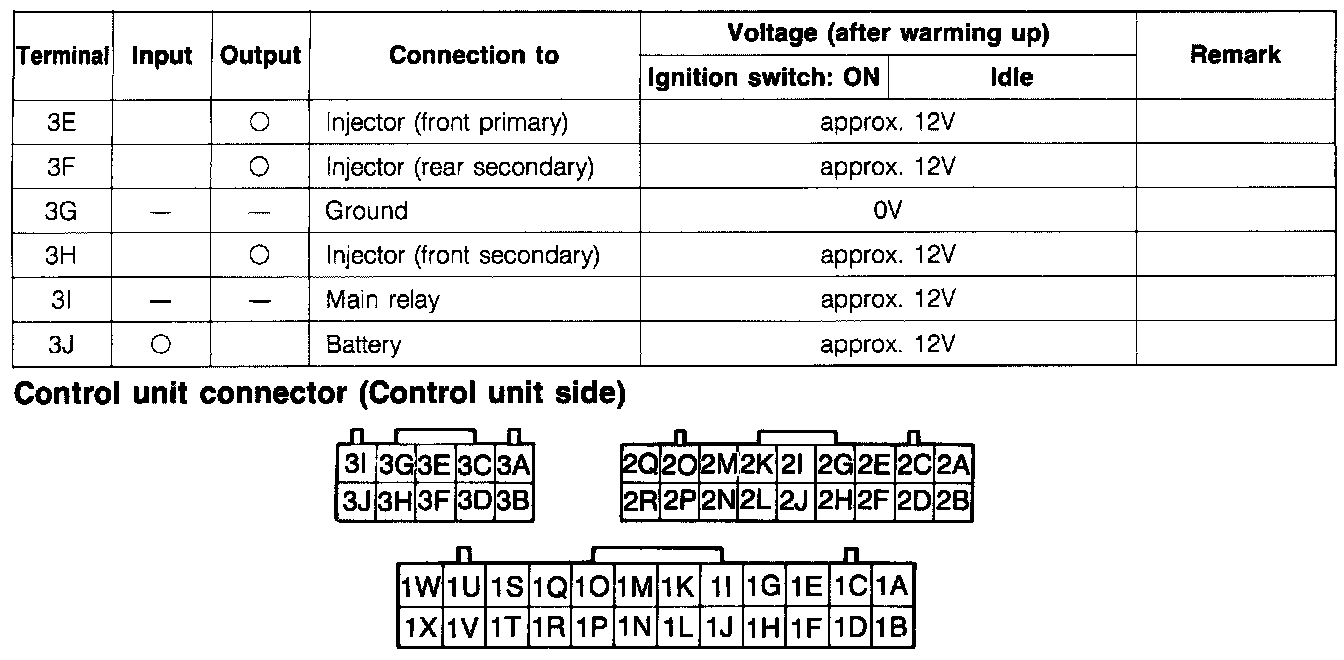

Control Unit Voltage Specification Chart:
