Clock: Service and Repair

Clock And Warning Unit:

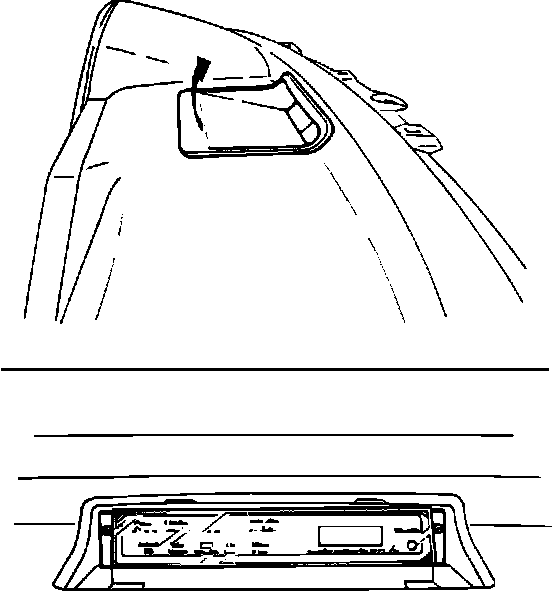

1. Pry upward on clock bezel as shown and remove from dash.
2. Remove clock and warning unit attaching screws.
3. Pull unit out from its mounting position and unplug electrical connector.
4. On installation, ensure that electrical connector is fully plugged in. Attach unit with screws and snap bezel back into place.
