Mazda
>>
1987
>>
626 L4-1998 cc 2.0L SOHC Turbo FE
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
System Specifications
System Specifications

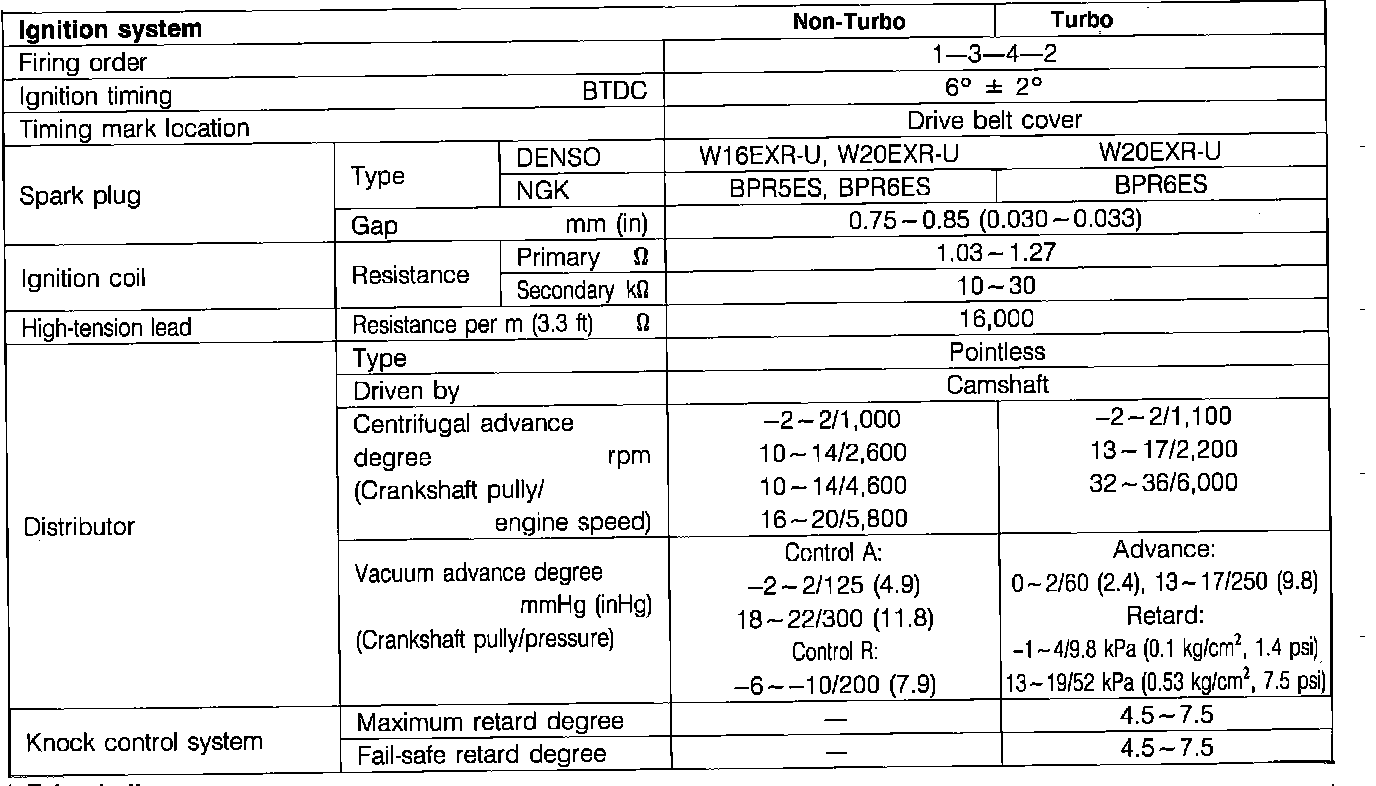

Fig. 2 Ignition system specifications:
