Home >> Mazda >> 1987 >> 626 L4-1998 cc 2.0L SOHC Turbo FE >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Timing >> Specifications

Ignition Timing: Specifications

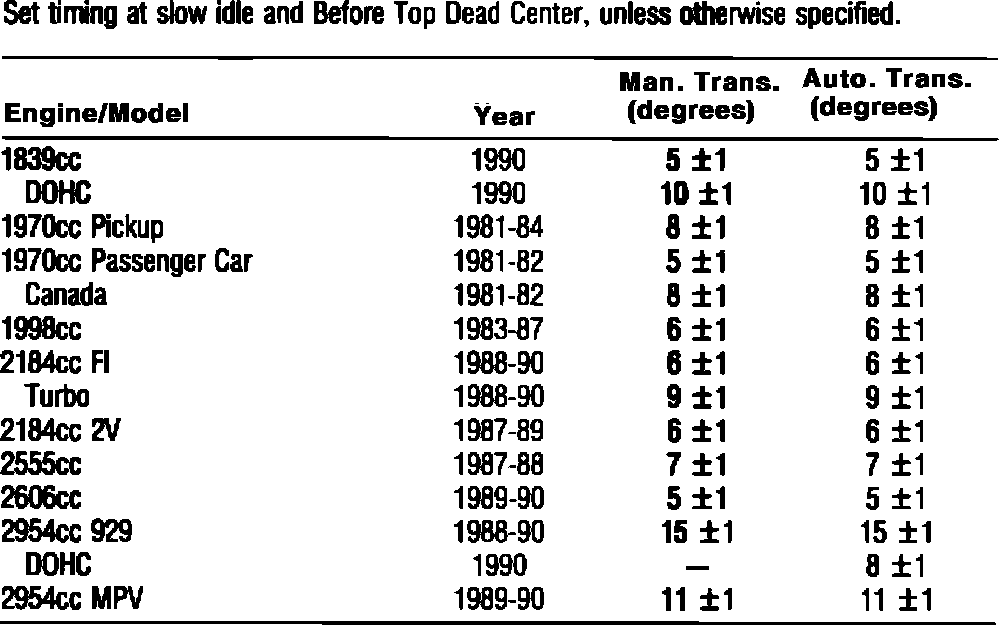

Fig. 6 Timing Specifications:
