Home
>>
Mazda
>>
1987
>>
626 L4-1998 cc 2.0L SOHC FE
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

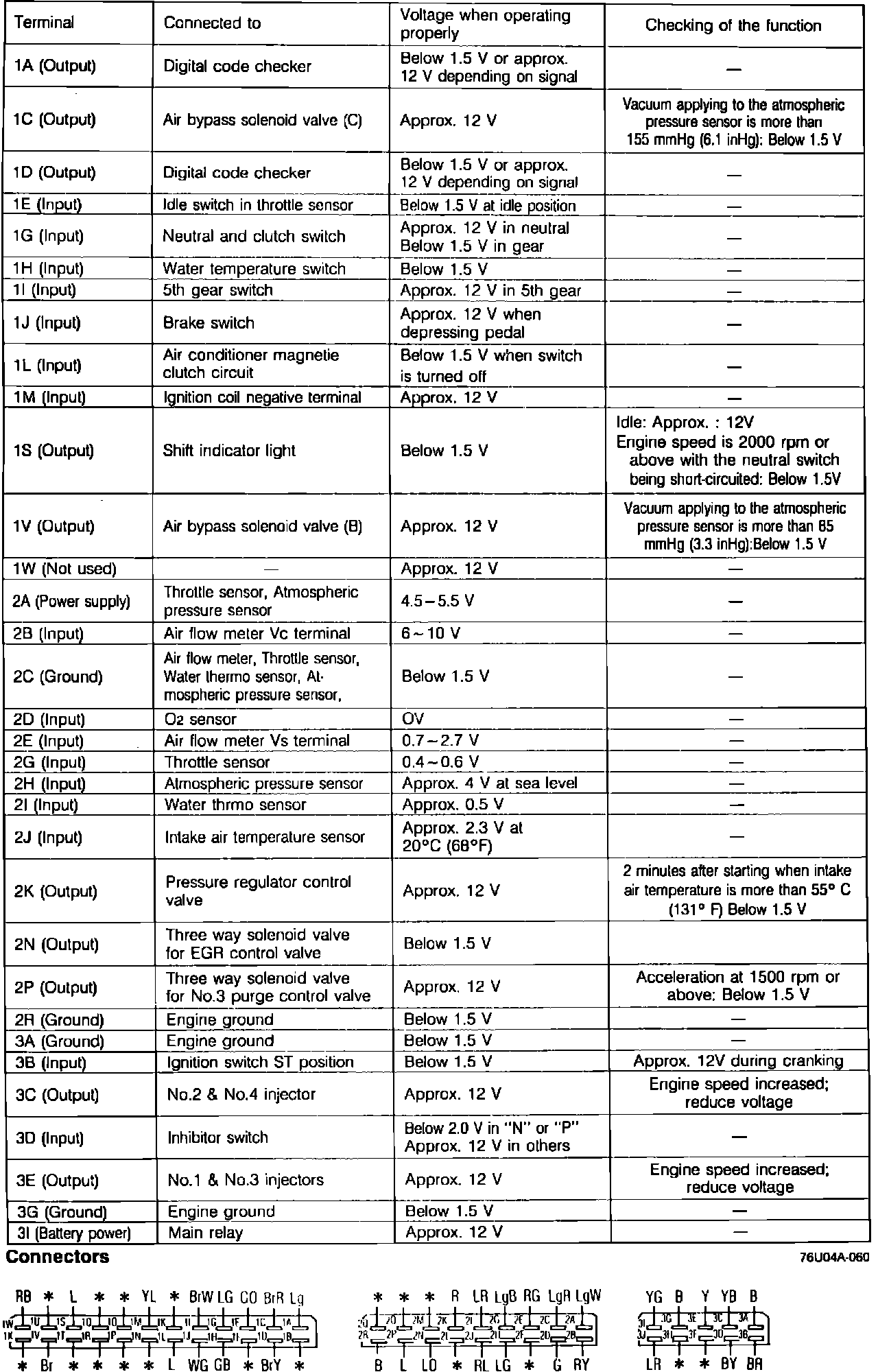

Fig. 63 Control unit voltage specifications chart. Non-turbocharged models:
