Fuel Pressure Pulsation Damper: Testing and Inspection

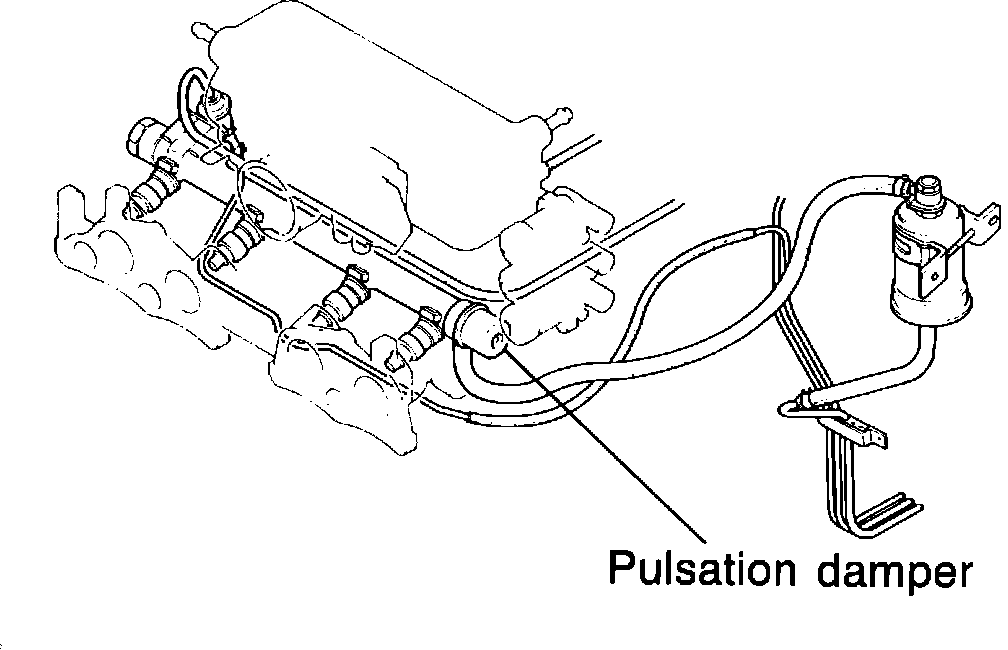

Fig. 5 Pulsation Dampner Inspection:

1. Run engine at idle.
2. Place finger on screw of pulsation damper head Fig. 5..
3. Ensure pulsation is felt.
