Emission Controls Diagram - Non-Turbo
Emission Controls Diagram - Non-Turbo

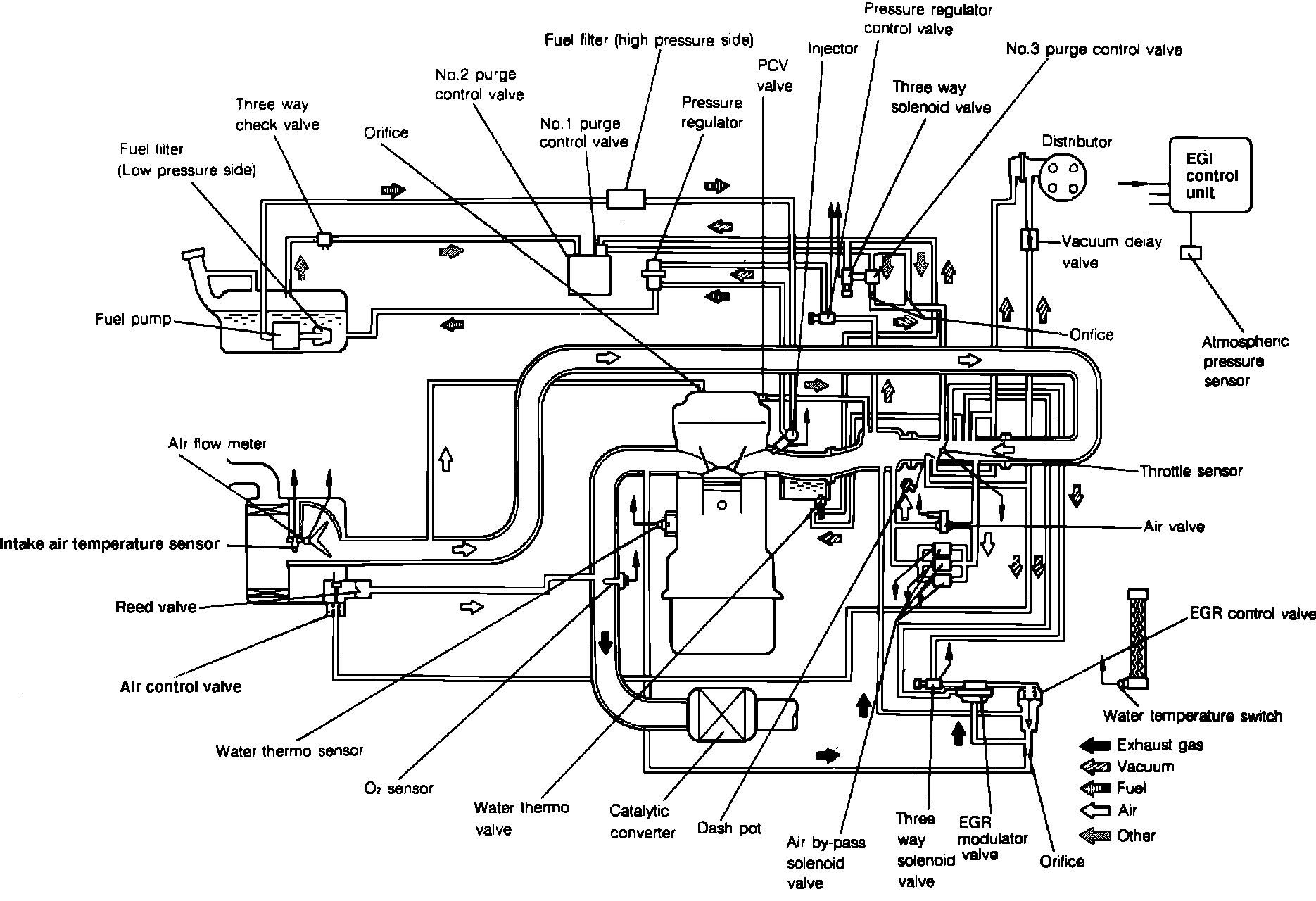

Fig. 51 Emission Controls Diagram. Exc. Turbo:
