Mazda
>>
1987
>>
626 L4-1998 cc 2.0L SOHC FE
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Light Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

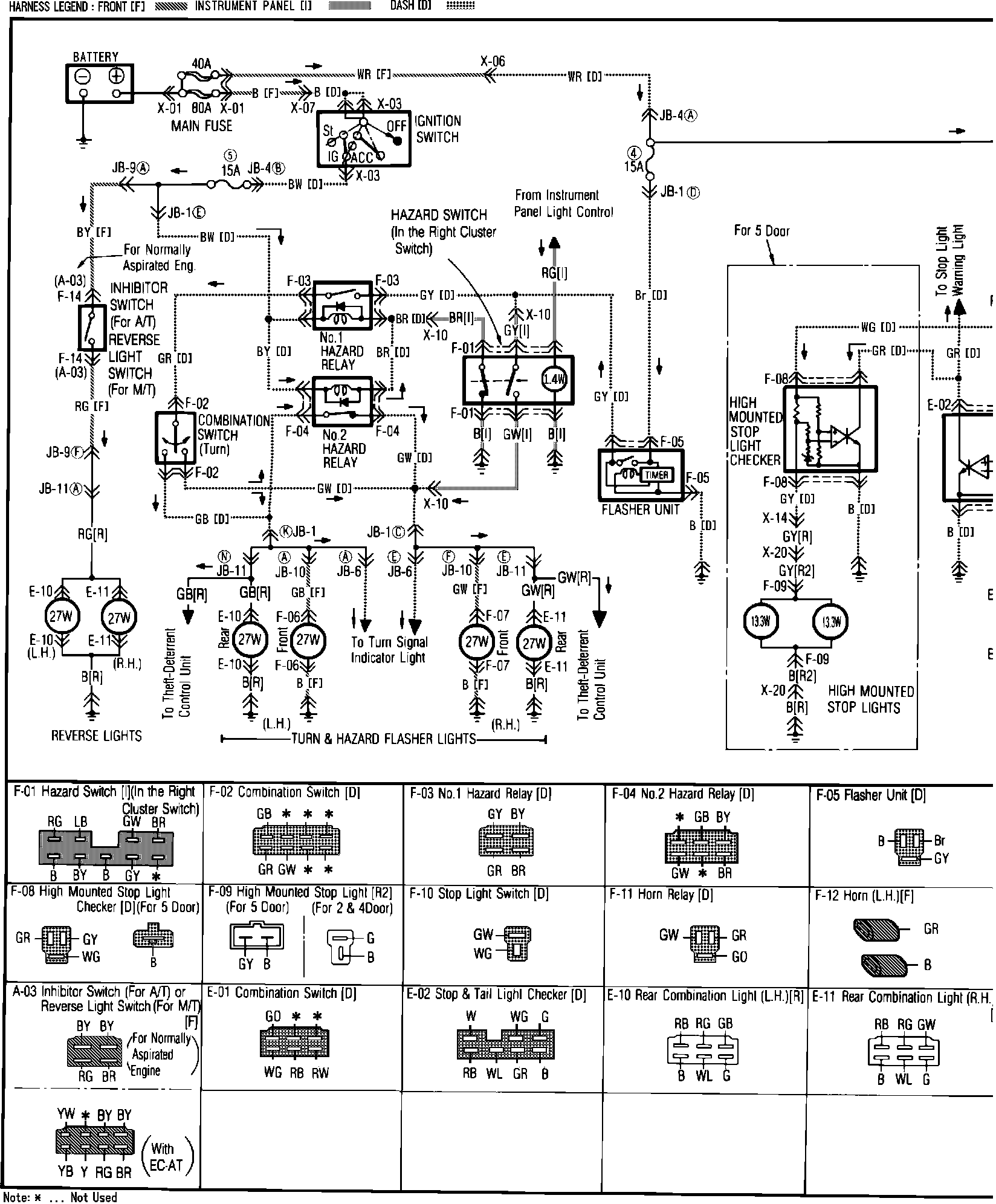

;P!#Fig. 48b Hazard Flasher, Back-Up, High Mounted Stop Lights, Horn, Stop, & Turn Signal Lights Wiring Circuit:
