Meter and/or Warning Lamps Do Not Operate


NOTE: Check the fuse "Meter 15A" in fuse box before troubleshooting. If normal, refer to the following troubleshooting chart.

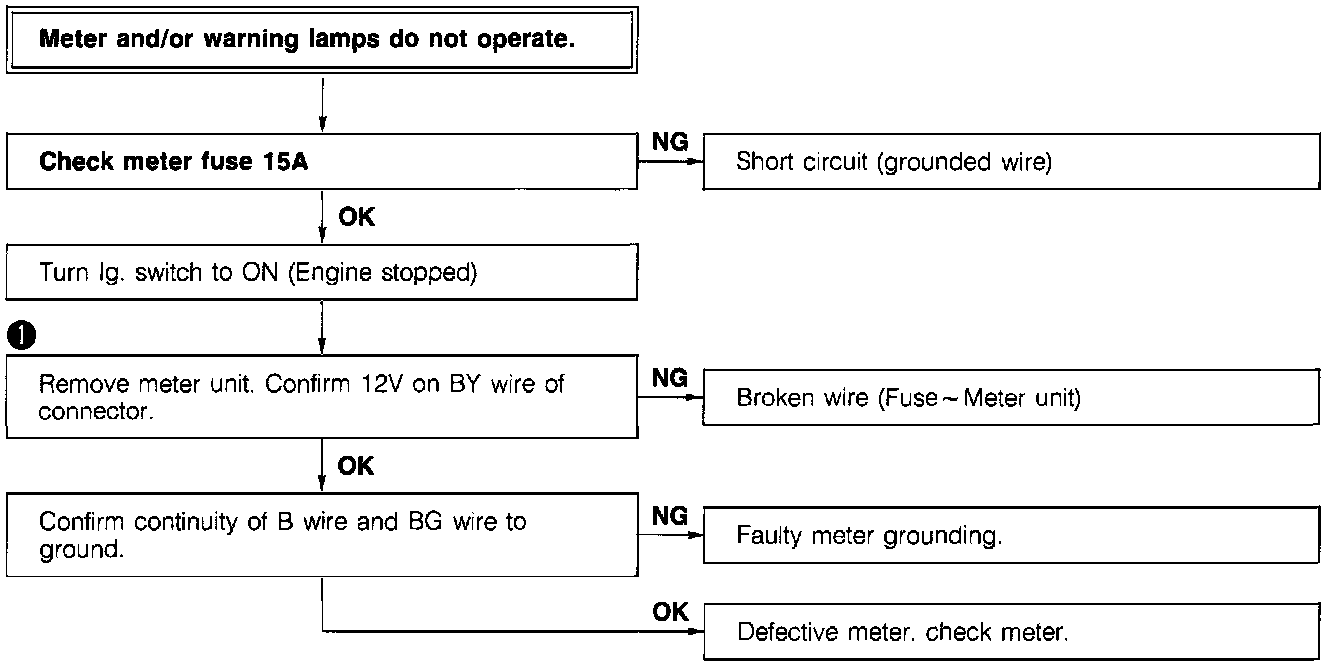

Meter And/Or Warning Lamps Troubleshooting:




TROUBLESHOOTING CHART

Circuit Diagram:




CIRCUIT DIAGRAM

Connector C-01:




Connector C-01:




CONNECTORS
