Low Fuel Lamp/Indicator: Testing and Inspection

1. Disconnect the connector from the fuel tank unit.

Low Fuel Level Warning Light Inspection:

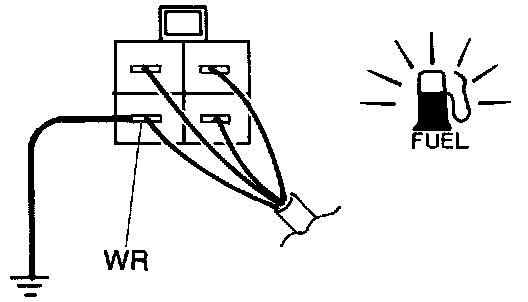

2. Connect the connector terminal "WR" to the body ground.
3. Start the engine and check that the FUEL warning light illuminates.
4. If there is no illumination, check the fuse, warning light and wiring harness.
