W/ Analog Cluster

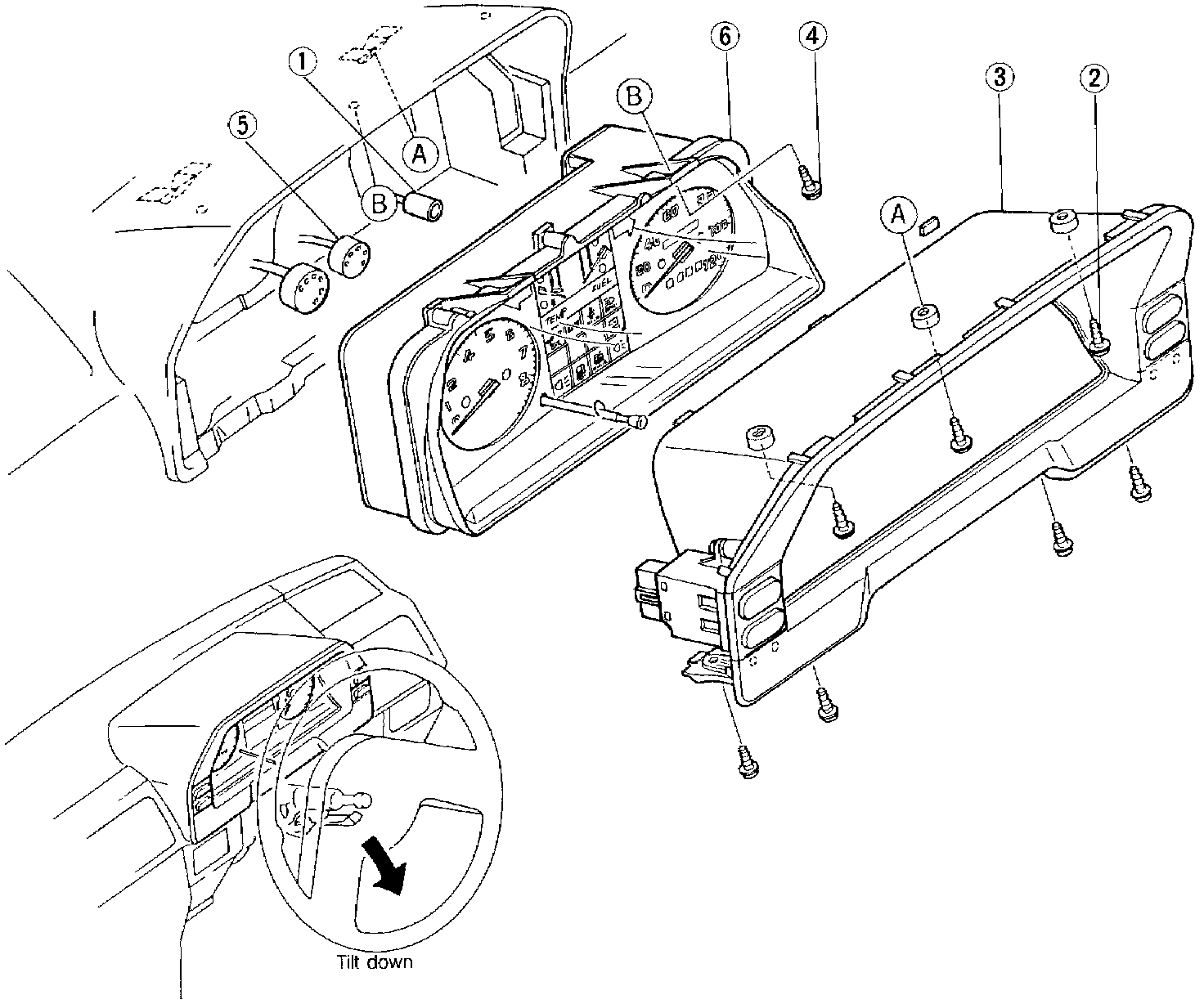

Instrument Cluster Removal And Installation:

REMOVAL AND INSTALLATION
1. Disconnect the battery negative cable.
2. Remove the parts in the sequence shown.
1. Speedometer cable
2. Screws
3. Meter hood
4. Screws
5. Meter connectors
6. Meter assembly

3. Installation is in the reverse order of removal.

NOTE: Removal of digital meter is similar.

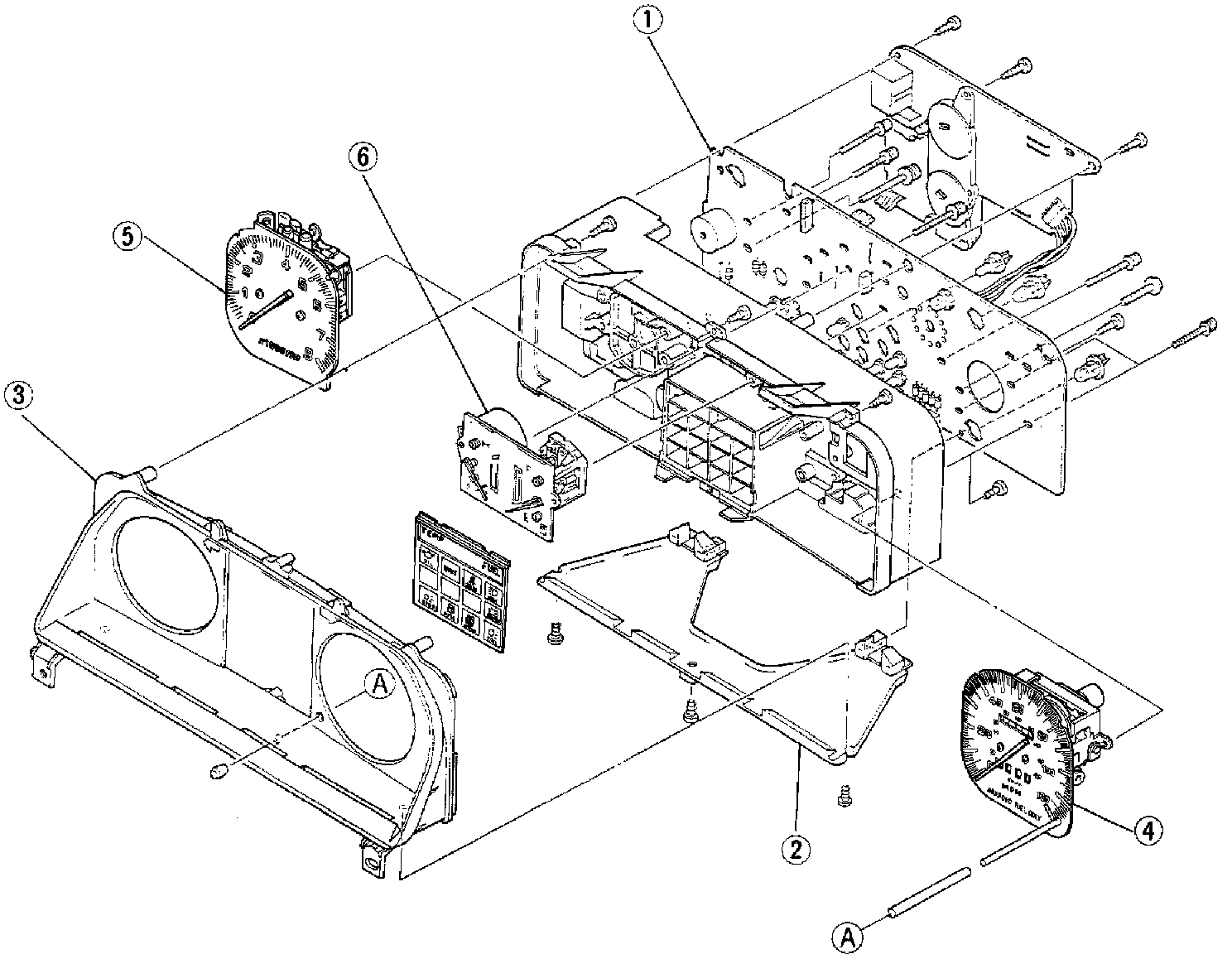

Analog Meter Disassembly And Assembly:

DISASSEMBLY AND ASSEMBLY
1. Disassemble in the sequence shown.
1. Printed circuit board
2. Lighting plate
3. Window plate
4. Speedometer
5. Tachometer
6. Fuel and water temperature gauge
2. Assembly is in the reverse order of removal.
