Charge Lamp/Indicator: Testing and Inspection

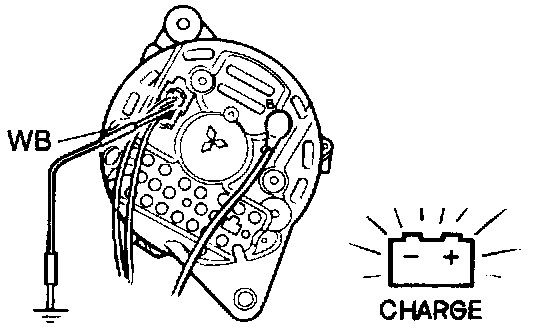

1. Start the engine, connect the connector terminal "WB" to a body ground.

Alternator Warning Light:

2. Check that the generator warning light illuminates.
3. If there is no illumination, check the warning lights wiring harness and alternator. Replace or repair as necessary.
