A/C - Relocation of Caution Label
87mazda03Category Applicable Model/s Subject Bulletin No. 017/87
16 All Models A/C CAUTION LABEL Issued 2/9/87
Revised
DESCRIPTION

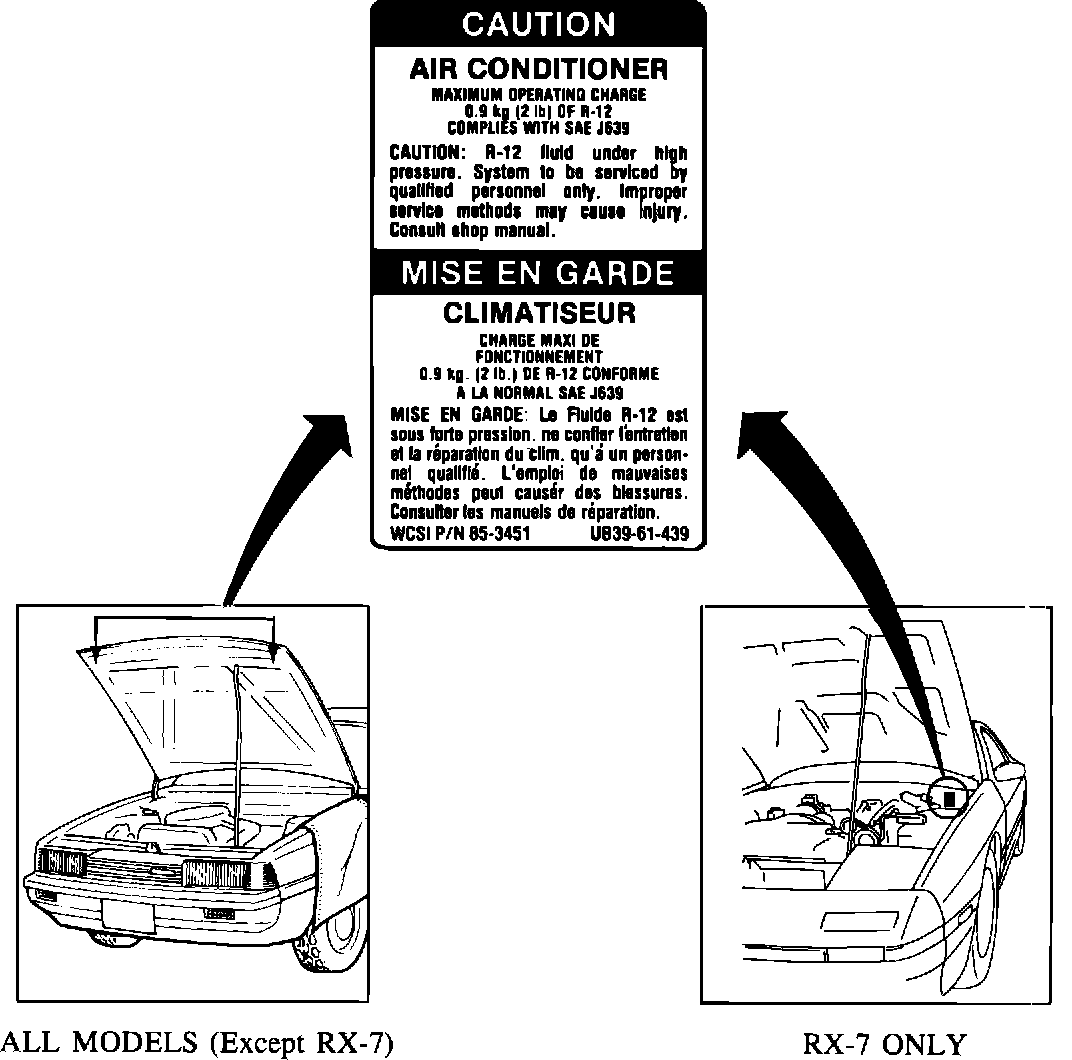

Since October 1986, all A/C kits are supplied with a caution label regarding safety recommendations and specifications for the air conditioning system. Except for the RX-7 models, this label is applied to the underhood as shown in the A/C Installation Instructions. For RX-7 models, the label has been relocated from the underhood area to the firewall (driver side) area as shown. Please take note of this change.
NOTE: (For all models EXCEPT RX-7) Due to the location of the emission hose routing diagram label, the A/C caution label will be located within the area indicated by arrows.
