Mazda
>>
1987
>>
626 L4-1998 cc 2.0L SOHC FE
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension
Suspension

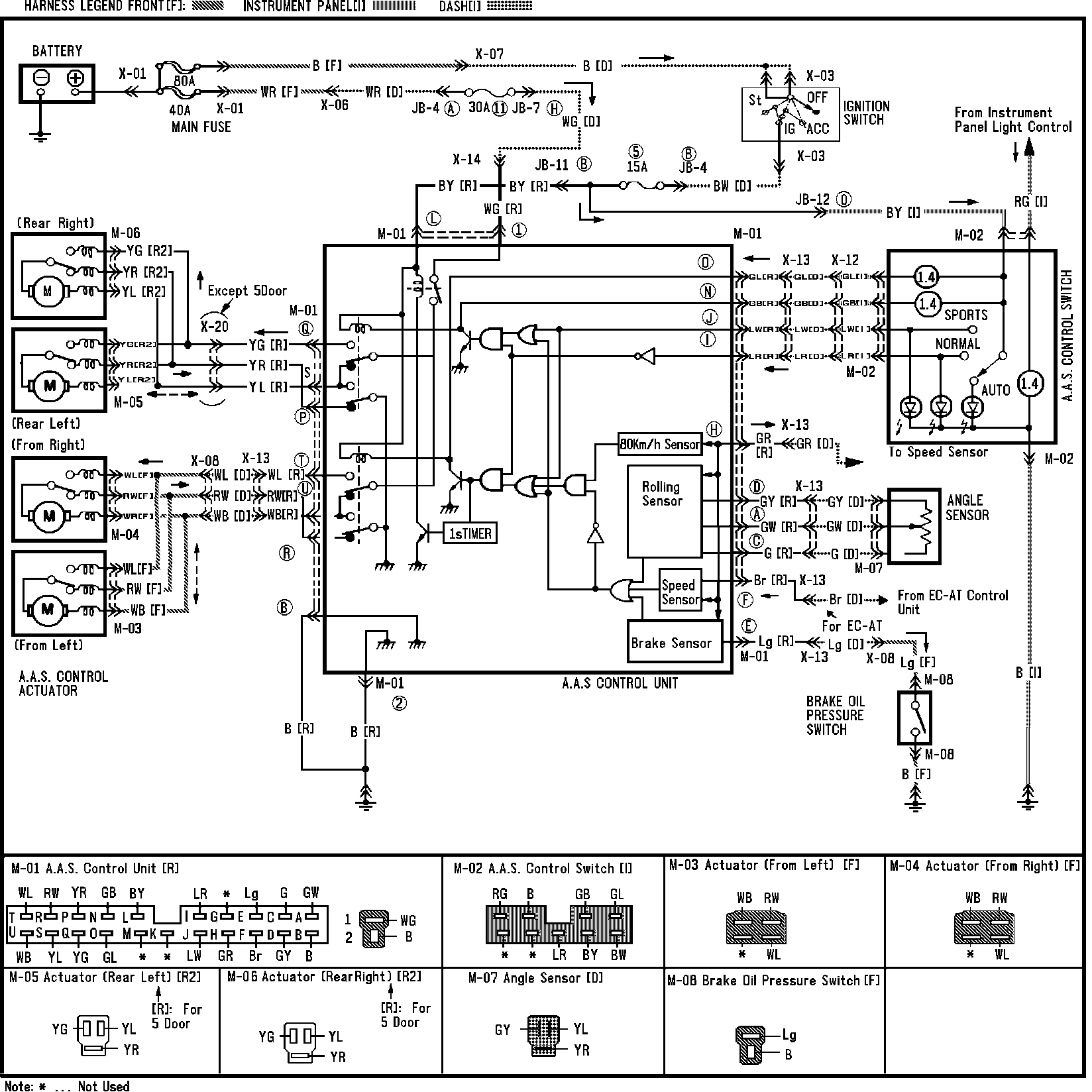

Fig. 39 Auto Adjusting Suspension Control Wiring Circuit:
