Mazda
>>
1987
>>
626 L4-1998 cc 2.0L SOHC FE
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
Radio/Stereo

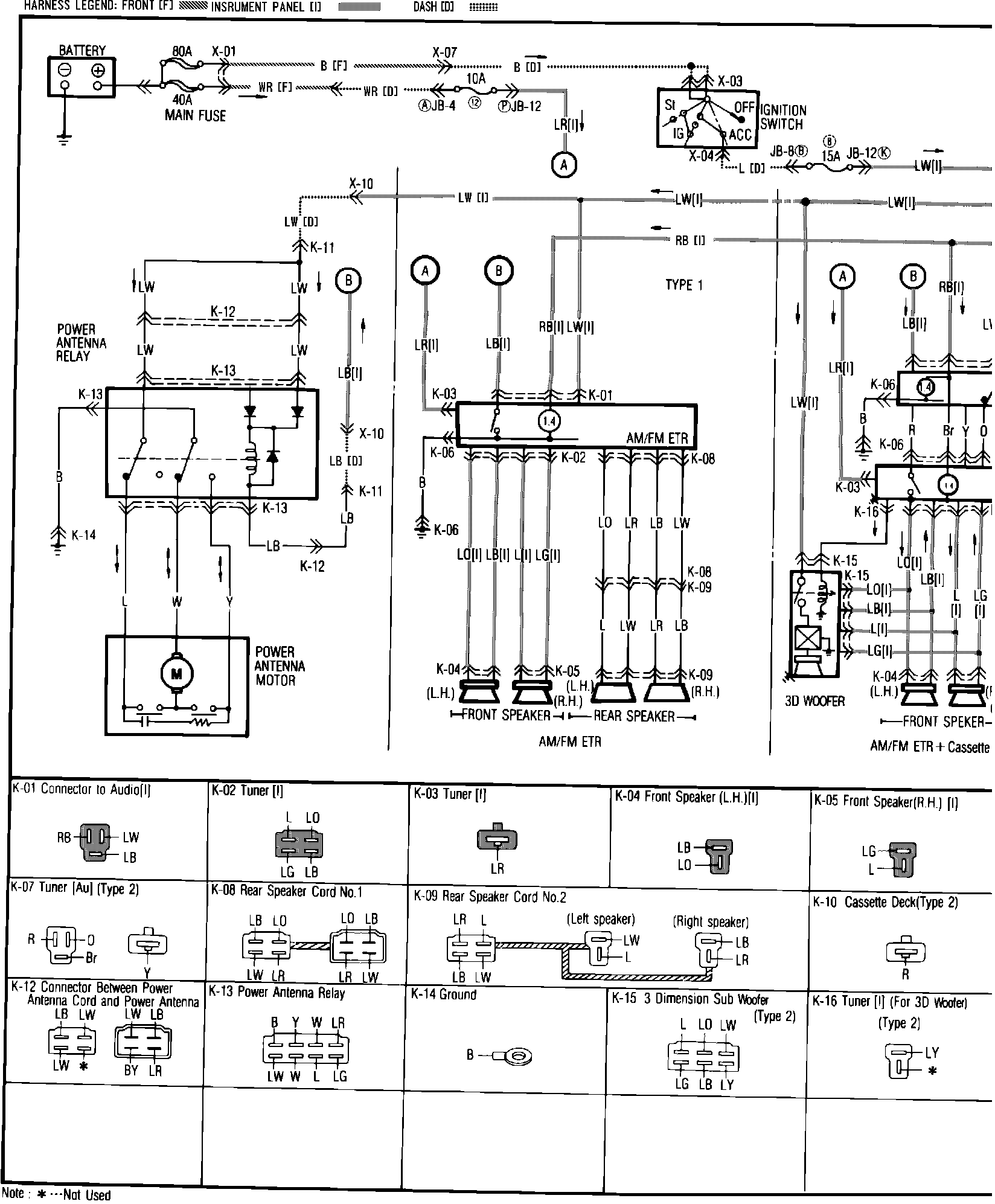

˴RFig. 56b Power Antenna & Radio System Wiring Circuit:
