Dashboard / Instrument Panel: Service and Repair

Instrument Panel Removal And Installation:

REMOVAL AND INSTALLATION

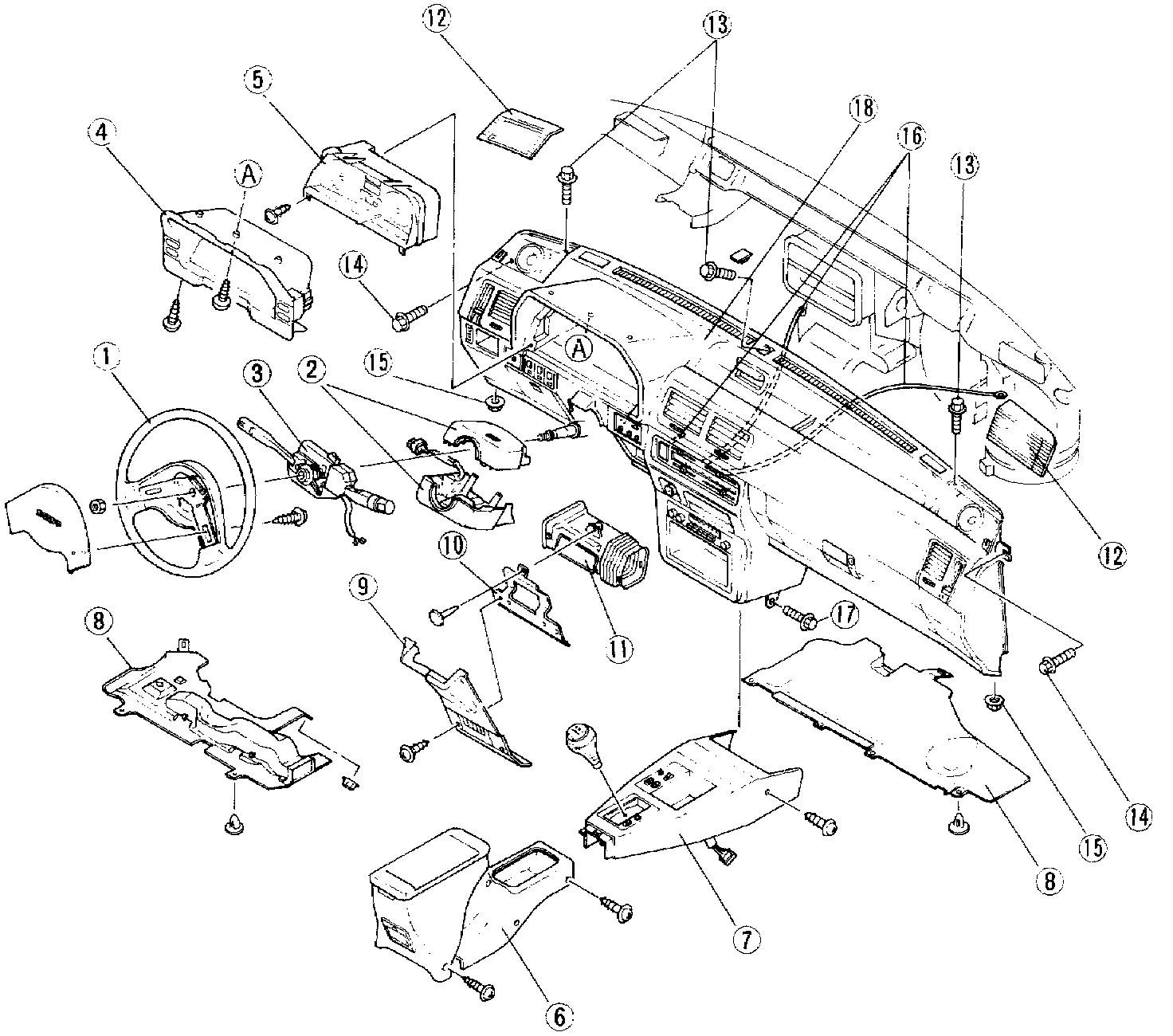

After disconnecting the negative battery cable remove the parts in the numbered order shown in the figure.
1. Steering wheel
2. Column cover (upper and lower)
3. Combination switch
4. Meter hood
5. Meter
6. Rear console
7. Front console
8. Under cover
9. Lower panel
10. Panel
11. Lower louver
12. Speaker covers
13. Bolts (3)
14. Bolts (2)
15. Nuts (2)
16. Heater wire
17. Bolts (2)
18. Instrument panel

Installation is the reverse order of removal.
