Home
>>
Mazda
>>
1987
>>
323 L4-1600 1597cc
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

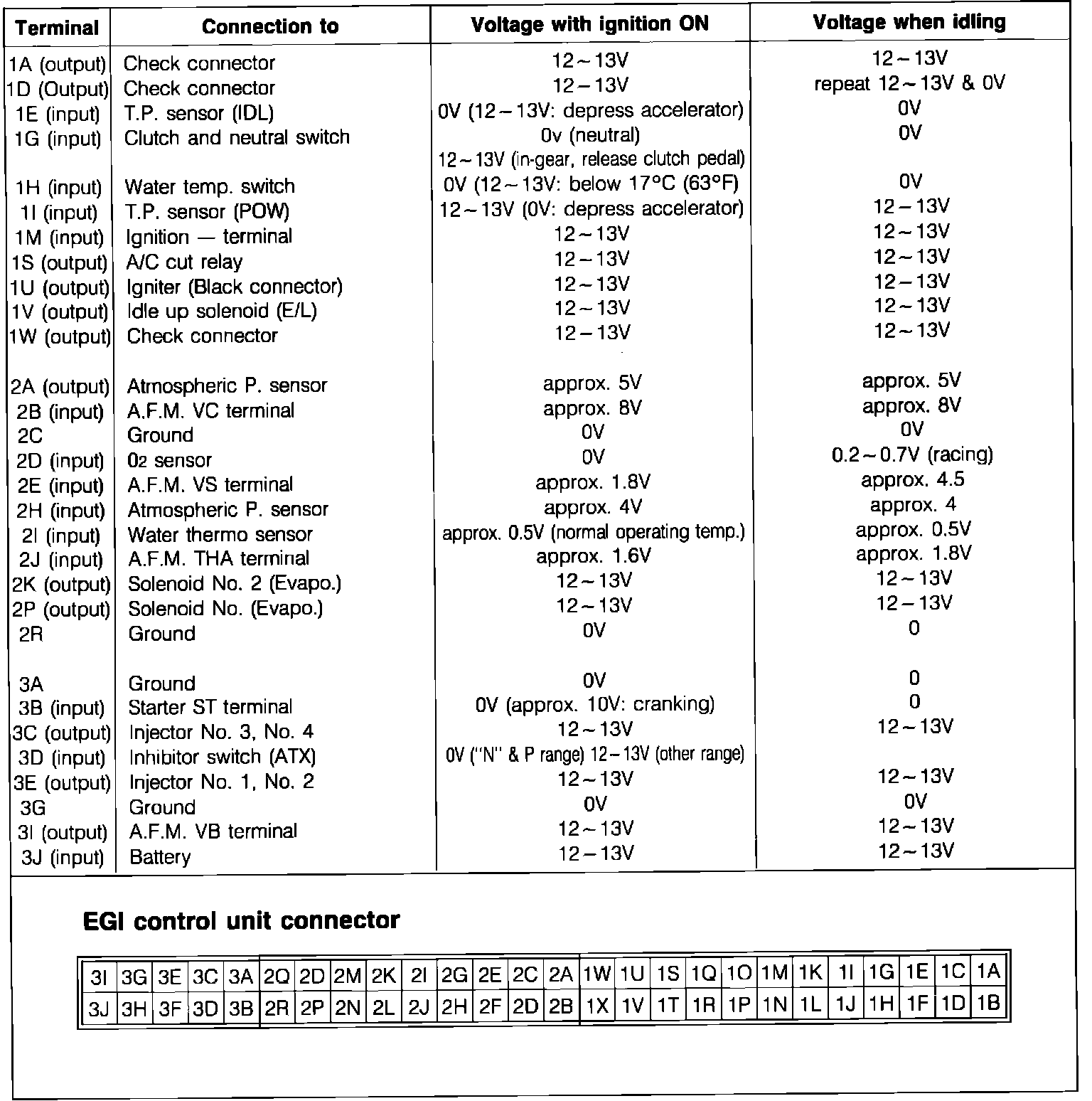

Fig. 62 Control unit voltage specifications chart.:
