Steering Control Module
Steering Control Module

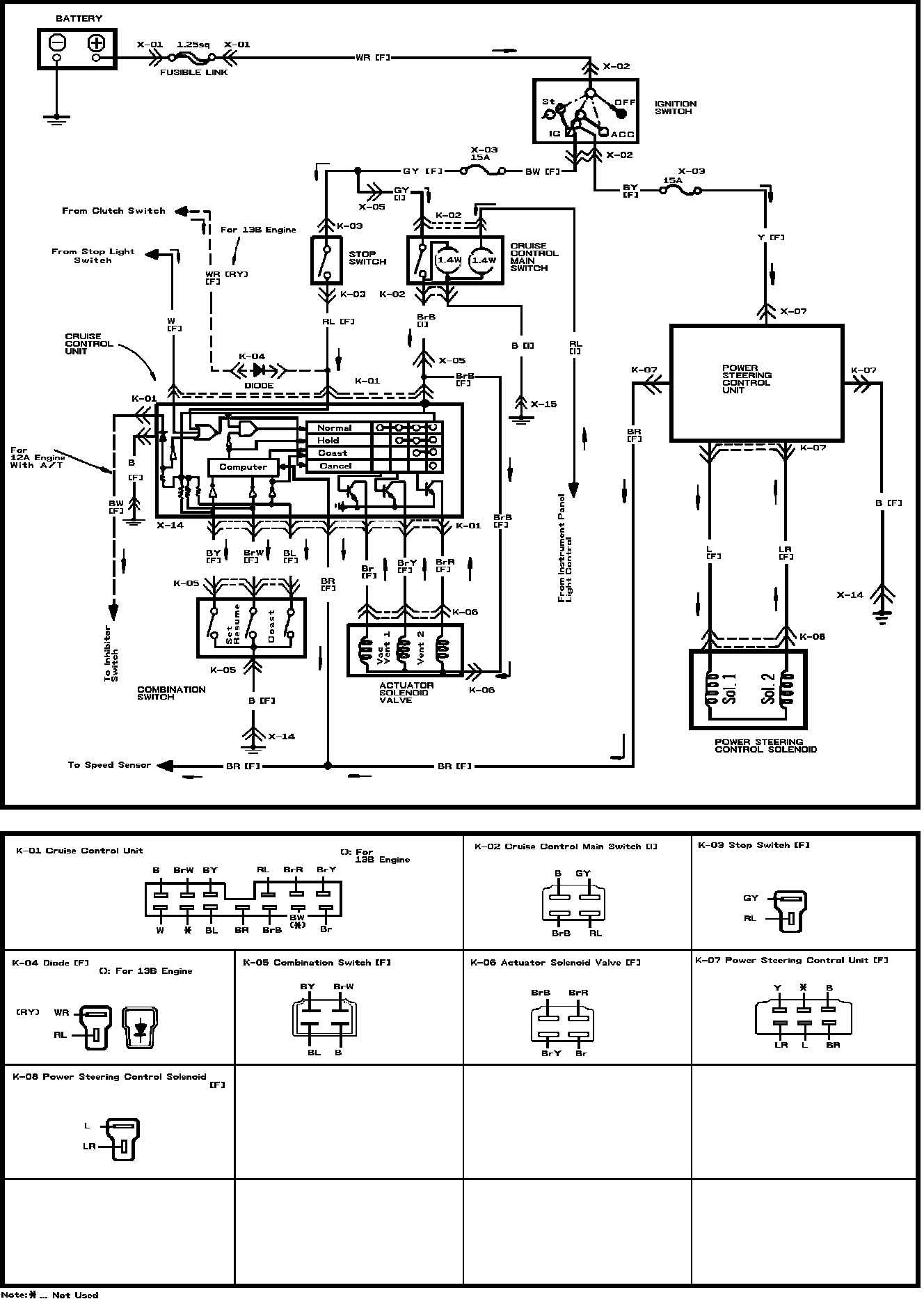

Fig. 43 Cruise Control System & Power Steering Control Solenoid:
