Transmission Gasket - Modification

Category 7
Applicable Model/s 1983 GLC
Subject TRANSMISSION GASKET MODIFICATION
Bulletin No. 062/83
Issued 8/5/83
Revised

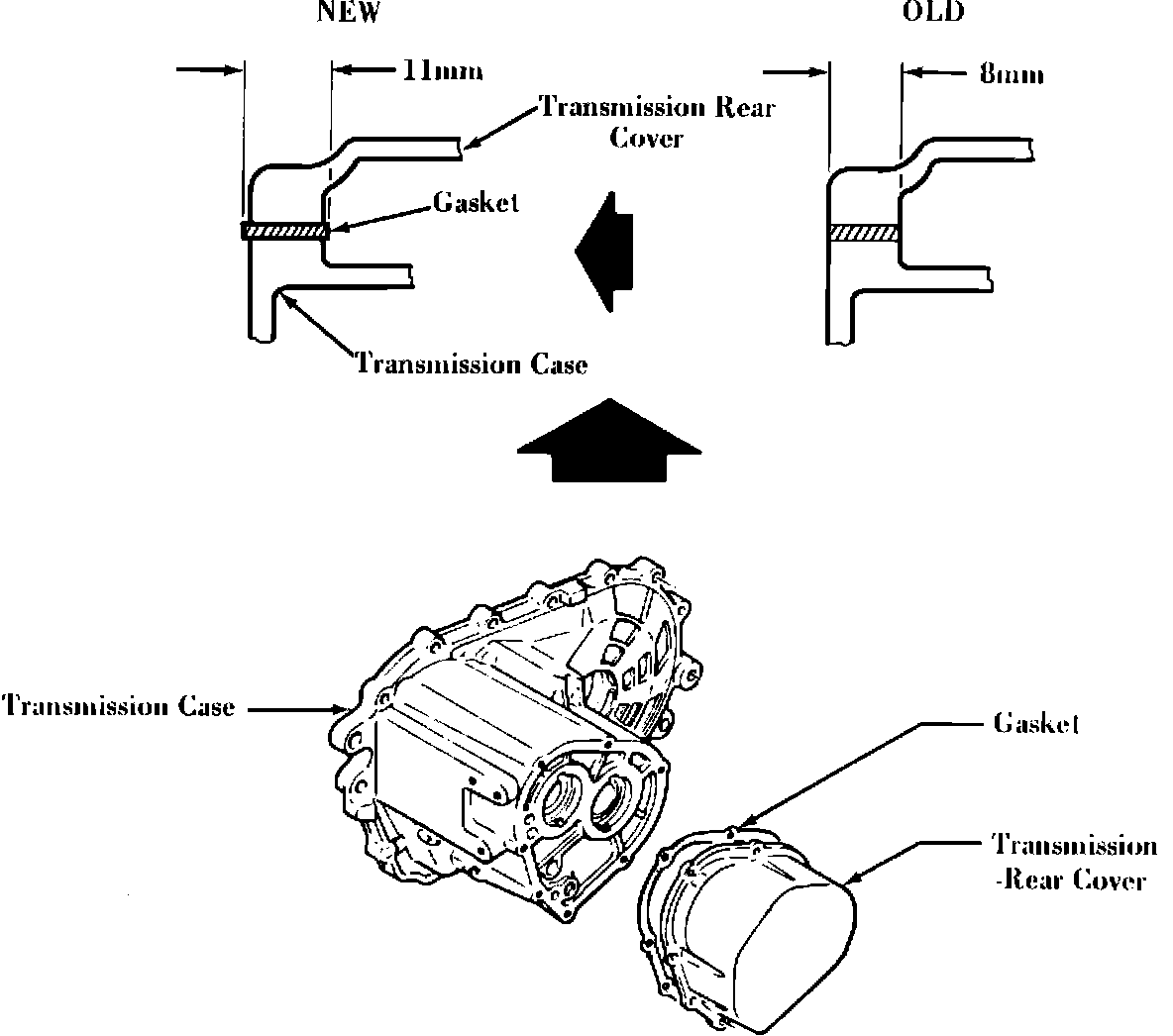

Transmission Gasket Assembly:

DESCRIPTION

The material and width of a gasket between the transmission case and the rear cover for the 1983 GLC 5 speed model has been changed since the production date of June, 1983.

Note: 1. This gasket can be replaced without removing the transmission.

2. The former gasket can be used in place of a new one if the ample sealant is applied on the both sides of the gasket.


VIN OF PRODUCTION CHANGE

Sedan: JM1BD221 D0723576 June, 1983
3 Door Hatchback: JM1BD231 D0724152 June, 1983
5 Door Hatchback: JM1BD241 D0700670 June, 1983


PARTS INFORMATION


PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

F501 17 112A F501 17 112 Gasket NEW to OLD


WARRANTY INFORMATION

Customer Comment Code: 1P
Damage Code: 38
Part No. of Main Cause: F501 17 112A
Quantity: 1
Operation No.: 17330A-R-X
Labor Hour: 0.6 Hr.
