Rear Washer Hose Removal/Installation
REAR WASHER HOSE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the splash shield (RH). Service and Repair

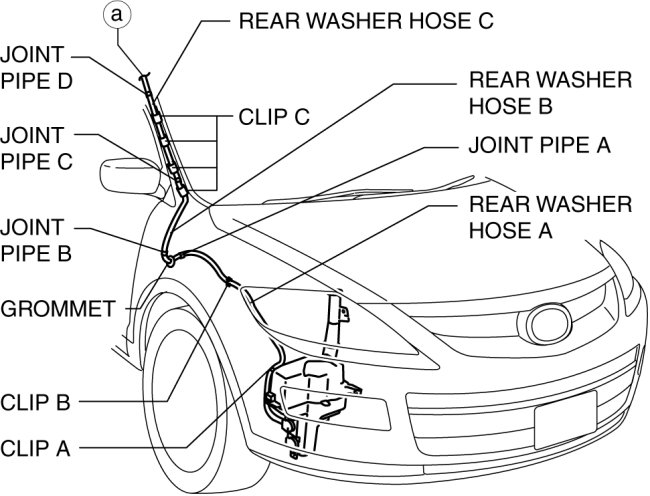

3. Disconnect rear washer hose A from the rear washer motor.
4. Remove rear washer hose A from clip A, B.
5. Disconnect joint pipe A and remove rear washer hose A.
6. Remove the grommet.
7. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation
b. Front console box mat Front Console Box Mat Removal/Installation
c. Indicator panel Indicator Panel Removal/Installation
d. Front console box Front Console Box Removal/Installation
e. Dashboard under cover Dashboard Under Cover Removal/Installation
f. Glove compartment Service and Repair
g. Side wall Side Wall Removal/Installation
h. Console panel Console Panel Removal/Installation
i. Console cover Console Cover Removal/Installation
j. Console Console Removal/Installation
k. Front scuff plate inner Front Scuff Plate Removal/Installation
l. Front side trim Front Side Trim Removal/Installation
m. Hood release lever Service and Repair
n. Lower panel Lower Panel Removal/Installation
o. Column cover Service and Repair
p. Driver-side air bag module Two-Step Deployment Control System Standard Deployment Control System
q. Steering wheel Service and Repair
r. Combination switch Removal and Replacement
s. Center panel Center Panel Removal/Installation
t. Meter hood Meter Hood Removal/Installation
u. Instrument cluster Removal and Replacement
v. Audio unit Audio Unit Removal/Installation
w. Steering shaft Service and Repair
x. A-pillar trim A-Pillar Trim Removal/Installation
y. Side panel Side Panel Removal/Installation
8. Disconnect joint pipe B, C and remove rear washer hose B.
9. Remove rear washer hose C from clips C.
10. Disconnect joint pipe C, D and remove rear washer hose C.
11. Remove the following parts:
a. Rear scuff plate inner Rear Scuff Plate Removal/Installation
b. Front seat belt lower anchor installation bolt (driver-side) Front Seat Belt Removal/Installation
c. B-pillar lower trim B-Pillar Lower Trim Removal/Installation
d. Front seat belt upper anchor installation bolt Front Seat Belt Removal/Installation
e. B-pillar upper trim B-Pillar Upper Trim Removal/Installation
f. Trunk box
g. Seat side box Seat Side Box Removal/Installation
h. Trunk end trim Service and Repair
i. Third-row seat Rear - Third-Row Seat Removal/Installation
j. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation
k. Trunk side trim
l. Roof side trim Roof Side Trim Removal/Installation
m. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation
n. C-pillar trim C-Pillar Trim Removal/Installation
o. Third-row seat belt upper anchor installation bolt Third-Row Seat Belt Removal/Installation
p. D-pillar trim D-Pillar Trim Removal/Installation
q. Front map light Front Map Light Removal/Installation
r. Sunvisor Service and Repair
s. Assist handle Service and Repair
t. RES unit cover (Vehicles with RES) RES Unit Removal/Installation
u. sunroof seaming welt. (Vehicles with sunroof)
v. Headliner Service and Repair
NOTE:
- Rear washer hose C is integrated with the headliner. If rear washer hose C is to be replaced, replace it with the headliner as a single unit.
12. Disconnect joint pipe D, E and remove rear washer hose D.

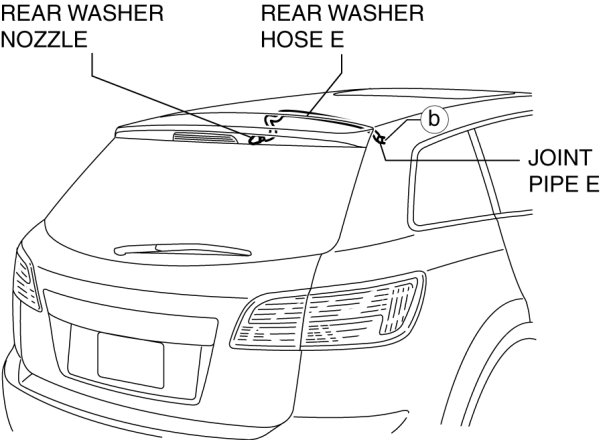

13. Remove rear washer hose E from the rear washer nozzle.
14. Disconnect joint pipe E and remove rear washer hose E.
15. Install in the reverse order of removal.
