Standard Deployment Control System

CLOCK SPRING INSPECTION [STANDARD DEPLOYMENT CONTROL SYSTEM]

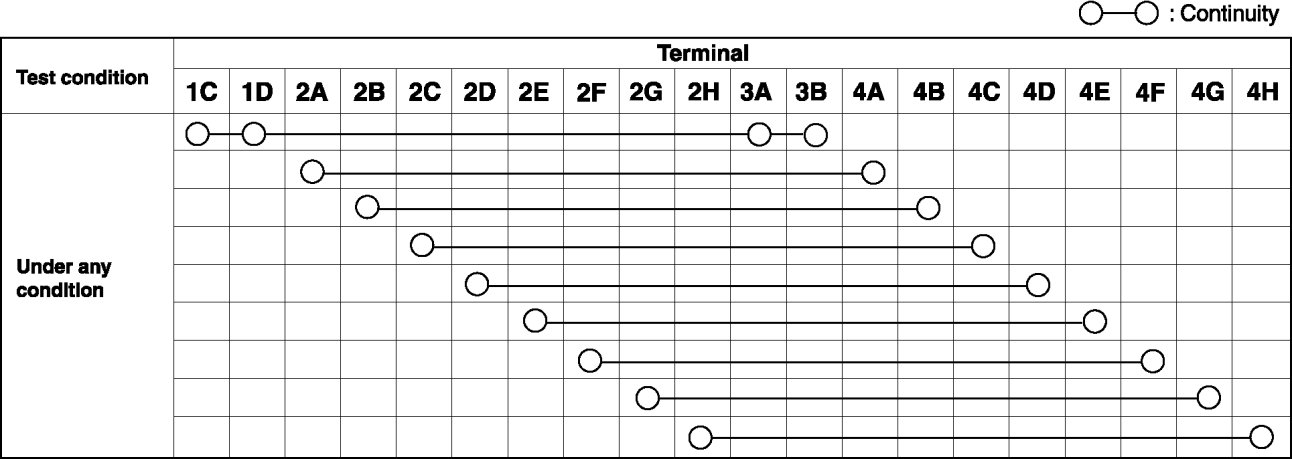

1. Verify that the continuity is as indicated in the table.

- If not as indicated in the table, replace the clock spring.

NOTE:

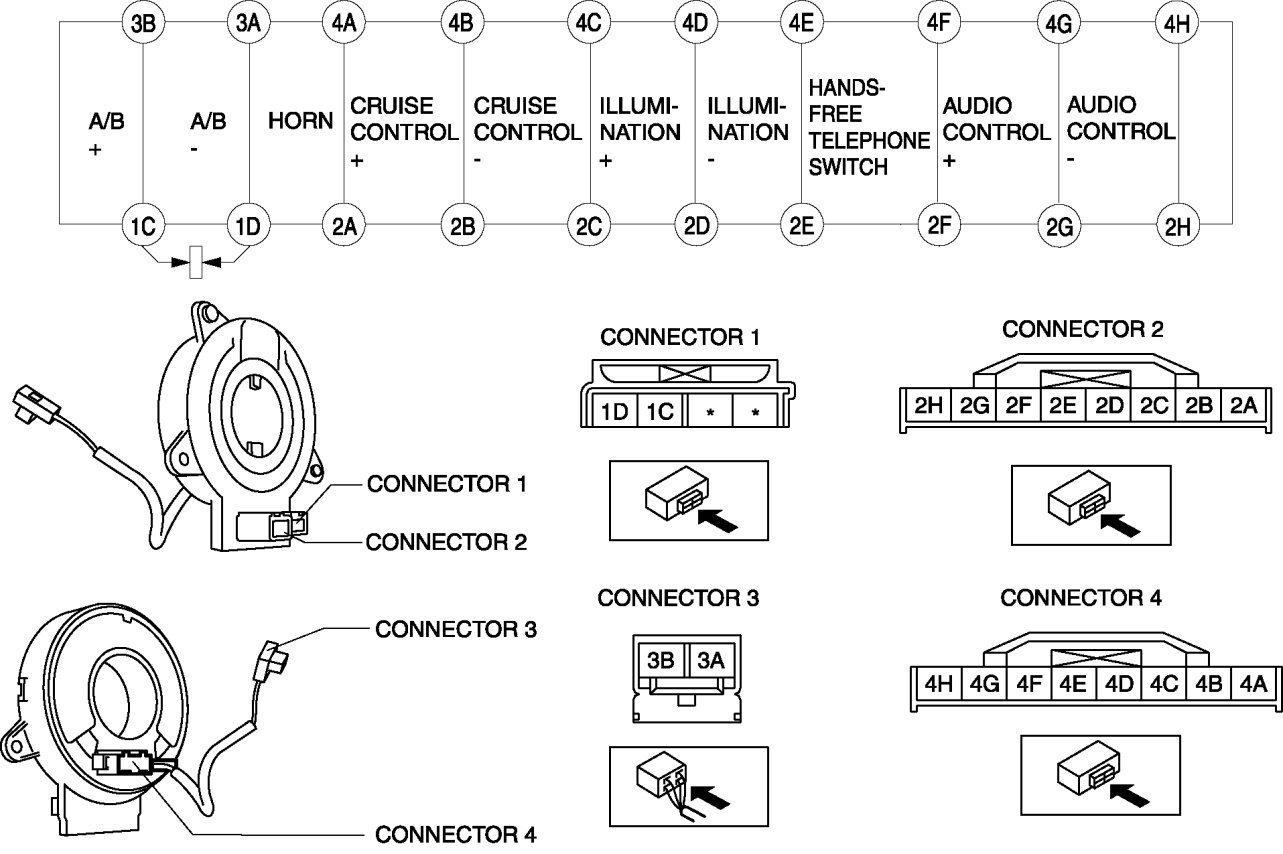

- When the vehicle-side connector for the clock spring is disconnected, terminals 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.
