Clockspring Assembly / Spiral Cable: Service and Repair

CLOCK SPRING REMOVAL/INSTALLATION

1. Disconnect the negative battery cable and wait for 1 min or more.

2. Remove the following parts:
a. Driver-side air bag module Two-Step Deployment Control System Standard Deployment Control System

b. Steering wheel Service and Repair

c. Column cover Service and Repair

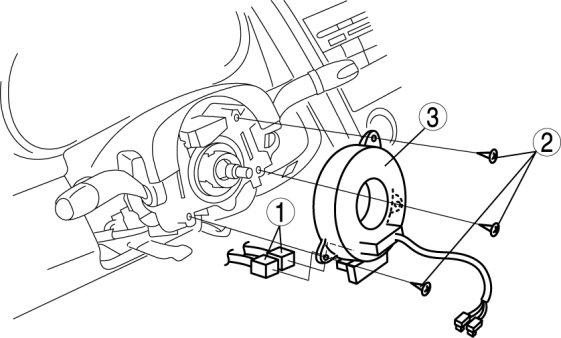

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Turn the ignition switch to the ON position.

6. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. Standard Deployment Control System Two-Step Deployment Control System
