Rear Wiper Motor Inspection

REAR WIPER MOTOR INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear wiper arm and blade Rear Wiper Arm And Blade Removal/Installation

b. Liftgate upper trim

c. Liftgate side trim

d. Liftgate lower trim

3. Remove the rear wiper motor connector.

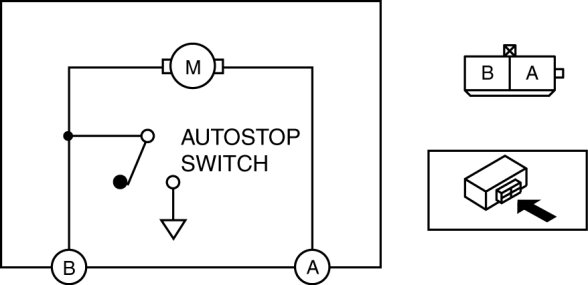

4. Connect battery positive voltage to the rear wiper motor terminal A, and ground the rear wiper motor terminal B.

5. Verify that the rear wiper motor operates.






- If there is any malfunction, replace the rear wiper motor. Rear Wiper Motor Removal/Installation

6. Disconnect the ground to the terminal B while the rear wiper is operating.

7. Verify that the rear wiper stops in the park position.

- If there is any malfunction, replace the rear wiper motor. Rear Wiper Motor Removal/Installation
