Rear Washer Nozzle Removal/Installation

REAR WASHER NOZZLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim.

3. Remove the rear spoiler. Service and Repair

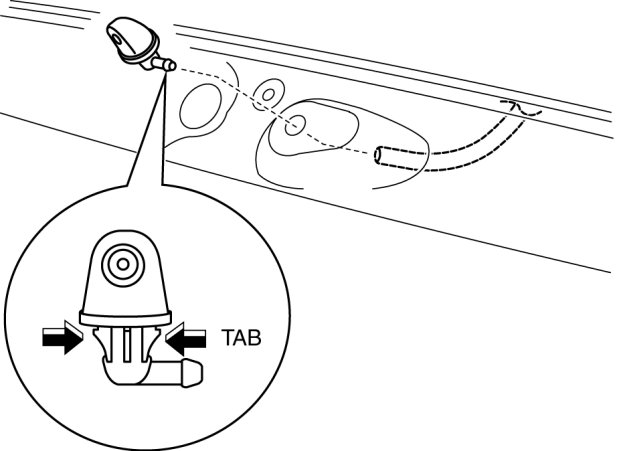

4. Press the tabs and remove the rear washer nozzle.






5. Install in the reverse order of removal.

6. Adjust the rear washer nozzle. Adjustments
