Scan Tool Testing and Procedures

ELECTRONIC AWD CONTROL SYSTEM ON-BOARD DIAGNOSIS

Reading DTCs Procedure

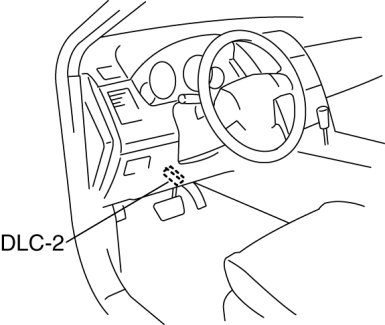

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.
a. Select "Self Test".

b. Select "Modules".

c. Select "4X4".

3. Verify the DTC according to the directions on the screen.

- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

4. After completion of repairs, clear all DTCs stored in the AWD CM.

Clearing DTCs Procedures

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.
a. Select "Self Test".

b. Select "Modules".

c. Select "4X4".

3. Verify the DTC according to the directions on the screen.

4. Press the clear button on the DTC screen to clear the DTC.

5. Turn the ignition switch to the LOCK position.

6. Turn the ignition switch to the ON position and wait for 5 s or more.

7. Perform DTC inspection.

8. Verify that no DTCs are displayed.

DTC Table

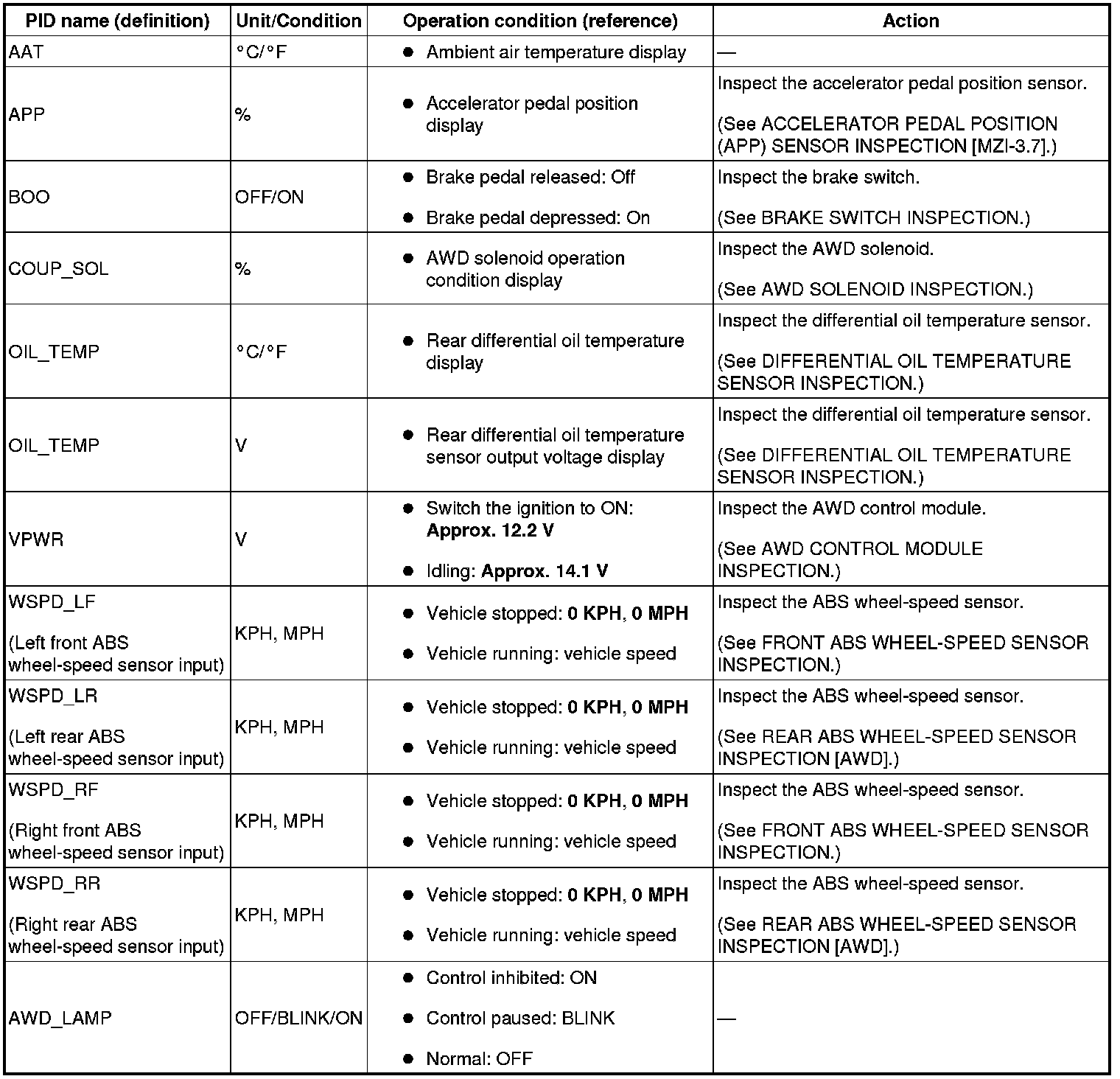

PID/DATA Monitor Table





Active Command Modes Table
