Joint Shaft Assembly

JOINT SHAFT ASSEMBLY [AWD]

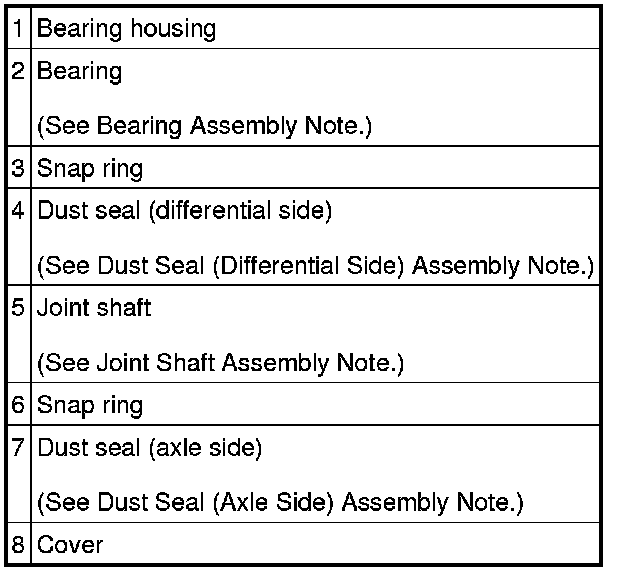

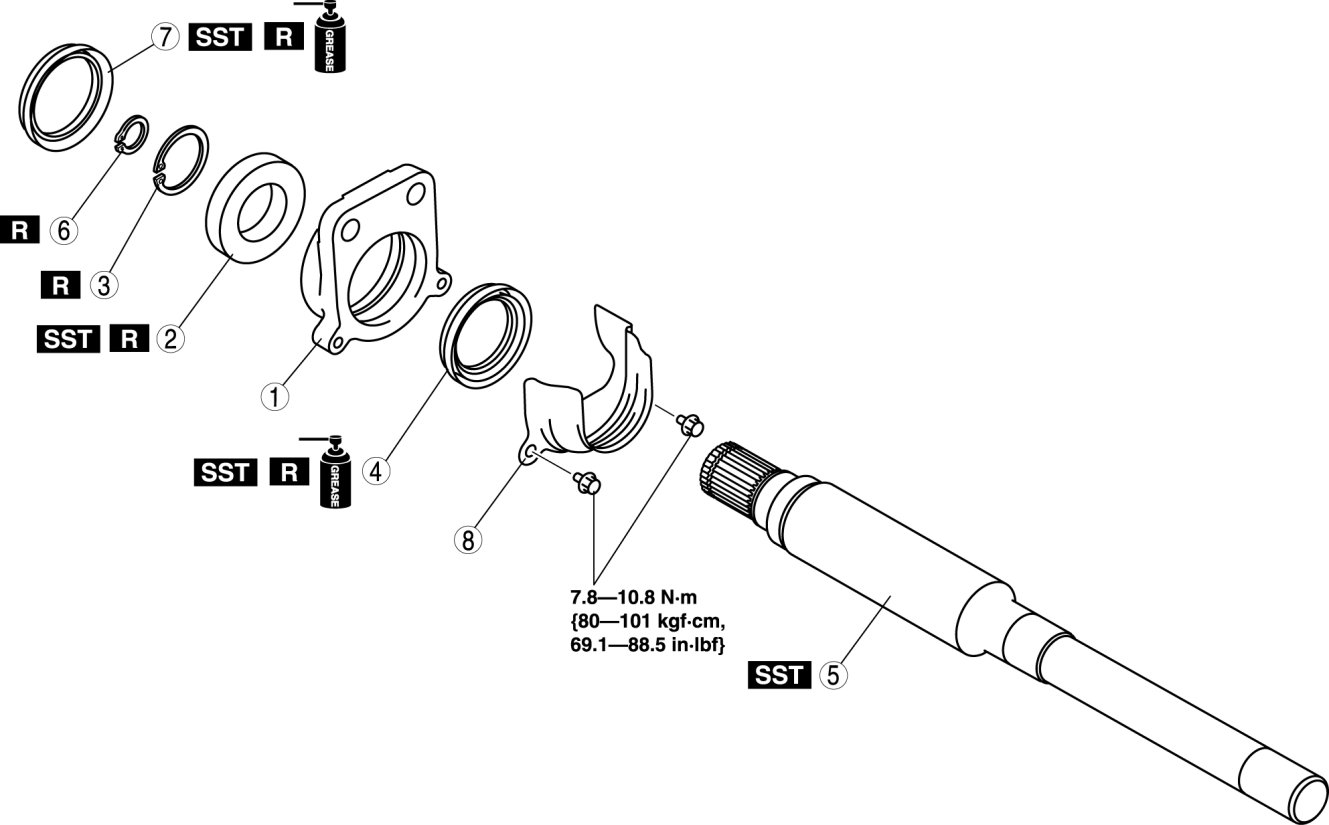

1. Assemble in the order indicated in the table.









Bearing Assembly Note

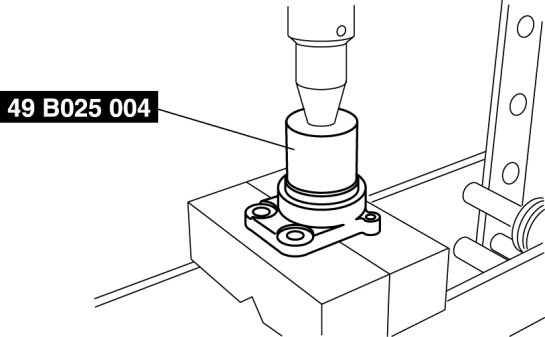

1. Install the new bearing using a press and the SST.






Dust Seal (Differential Side) Assembly Note

1. Apply grease to the new dust seal lip.

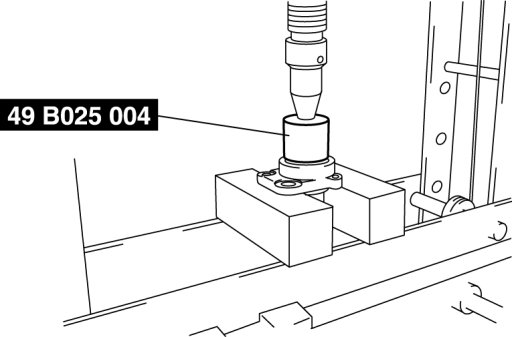

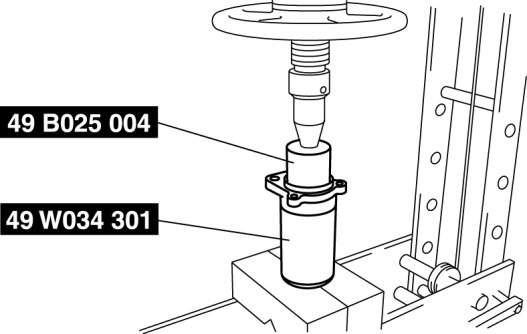

2. Install the dust seal (differential side) using a press and the SSTs.






Joint Shaft Assembly Note

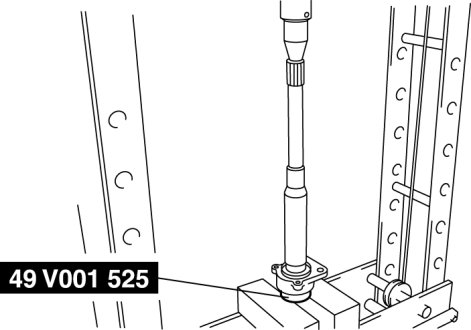

1. Install the joint shaft using a press and the SST.






Dust Seal (Axle Side) Assembly Note

1. Apply grease to the new dust seal lip.

2. Install the dust seal (axle side) using a press and the SST.
