Third-Row Buckle Removal/Installation

THIRD-ROW BUCKLE REMOVAL/INSTALLATION

Removal

1. Fold the third-row seat backs forward.

2. Remove the trunk box.

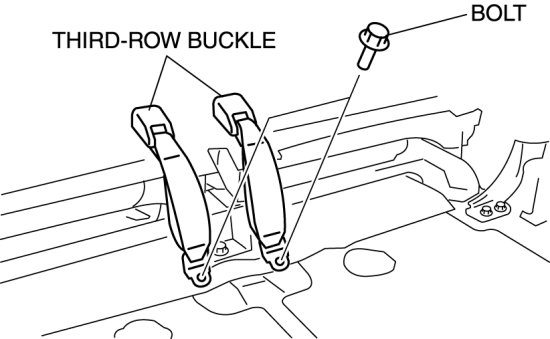

3. Remove the bolt.






4. Remove the third-row buckle.

Installation

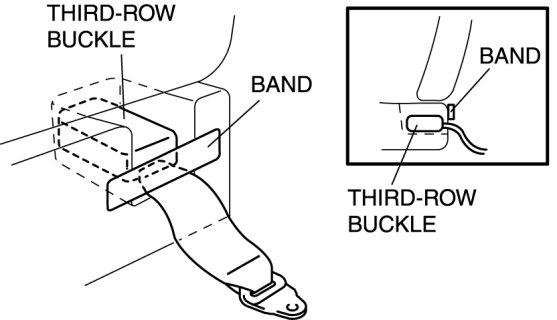

1. Bind the third-row seat belt buckles in a band as shown in the figure.

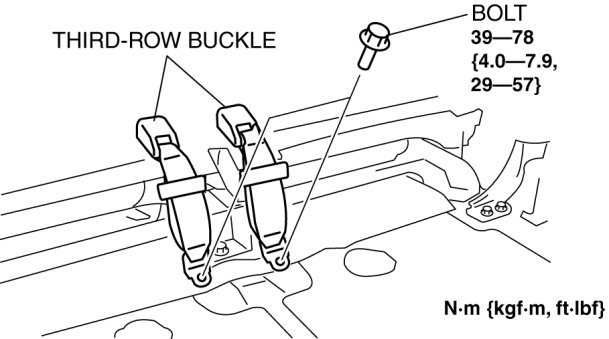

2. Install the bolt.






3. Remove the trunk box.
