Second-Row Buckle Removal/Installation

SECOND-ROW BUCKLE REMOVAL/INSTALLATION

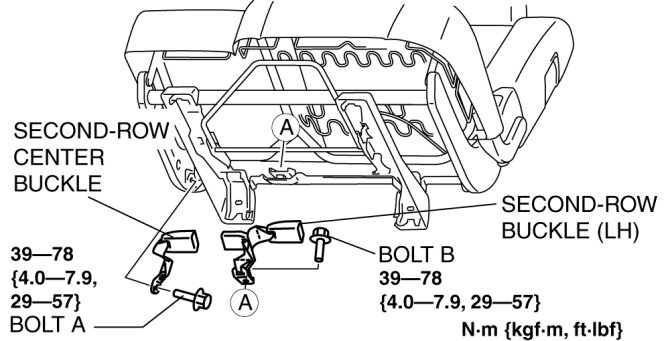

LH

1. Remove the second-row seat (LH). Rear - Second-Row Seat Removal/Installation

2. Remove the bolt A.






3. Remove the second-row center buckle.

4. Remove the second-row seat (LH) seat cushion pad. Rear - Second-Row Seat Disassembly/Assembly

5. Remove the bolt B.

6. Remove the second-row buckle (LH).

7. Install in the reverse order of removal.

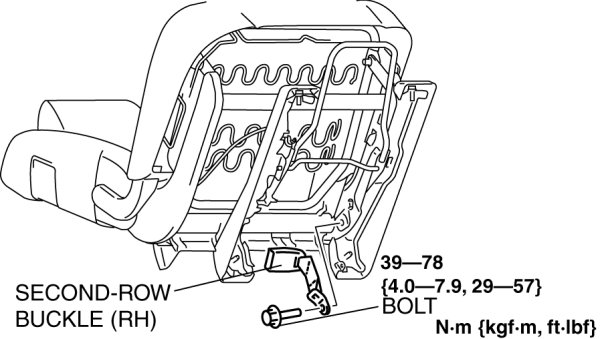

RH

1. Remove the second-row seat (RH). Rear - Second-Row Seat Removal/Installation

2. Remove in bolt.






3. Remove the second-row buckle (RH).

4. Install in the reverse order of removal.
