Front Buckle Removal/Installation

FRONT BUCKLE REMOVAL/INSTALLATION

1. Remove the front seat. Front Seat Removal/Installation

2. Remove the side cover No.1.

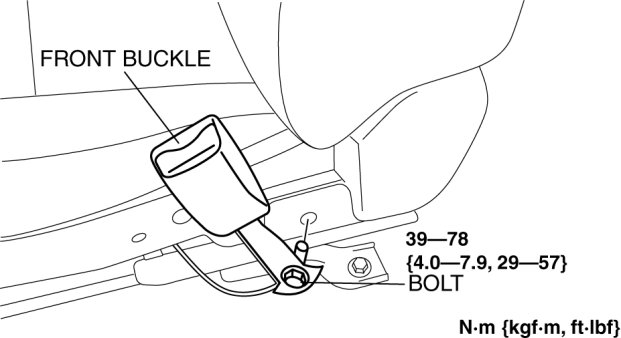

3. Remove the bolt.






4. Remove the front buckle.

5. Install in the reverse order of removal.
