Seat Belt Buckle Switch: Testing and Inspection

BUCKLE SWITCH INSPECTION

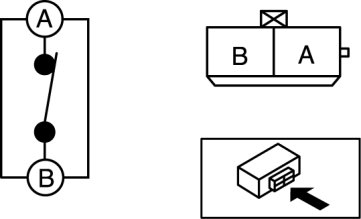

1. Inspect for continuity between the buckle switch terminals using a tester.

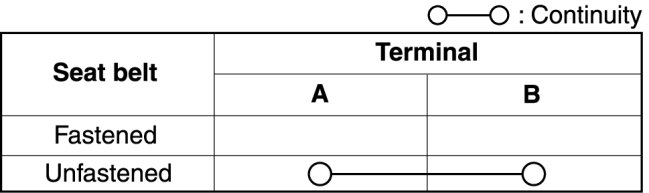

- If not as indicated in the table, replace the front buckle.
