Canister Purge Solenoid: Service and Repair

PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable. Removal and Replacement

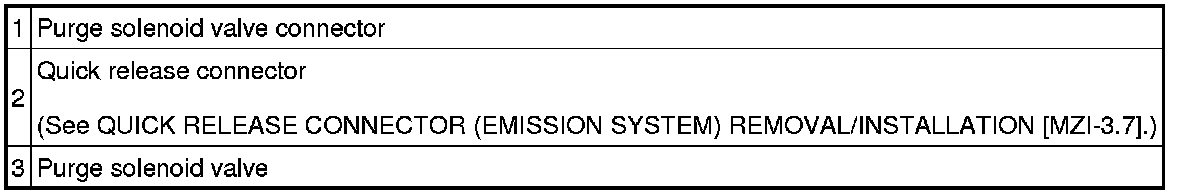

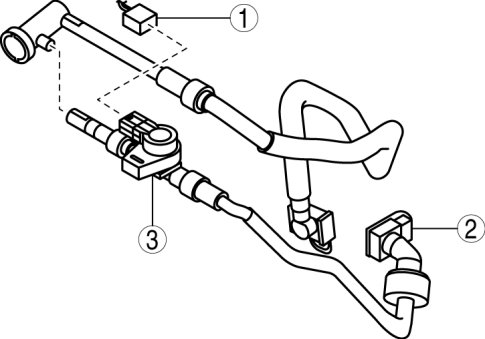

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
