Rear Wheel Hub Bolt Replacement

REAR WHEEL HUB BOLT REPLACEMENT

1. Remove the brake caliper component and suspend it out of the way using a cable.

2. Remove the disc plate.

3. Remove the parking brake shoe.

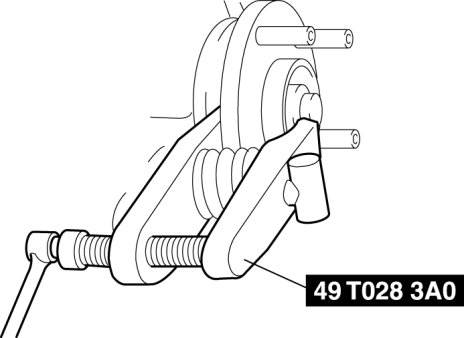

4. Remove the wheel hub bolt using the SST as shown in the figure.






5. Place a new wheel hub bolt in the wheel hub.

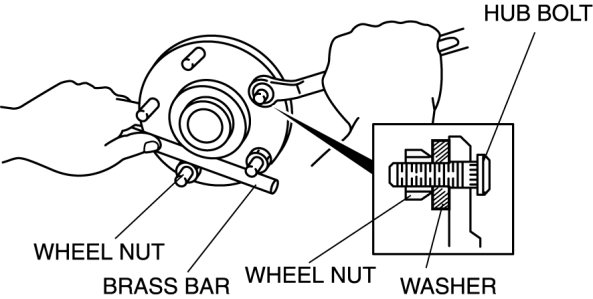

6. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
