Headlamp Switch: Testing and Inspection

LIGHT SWITCH INSPECTION

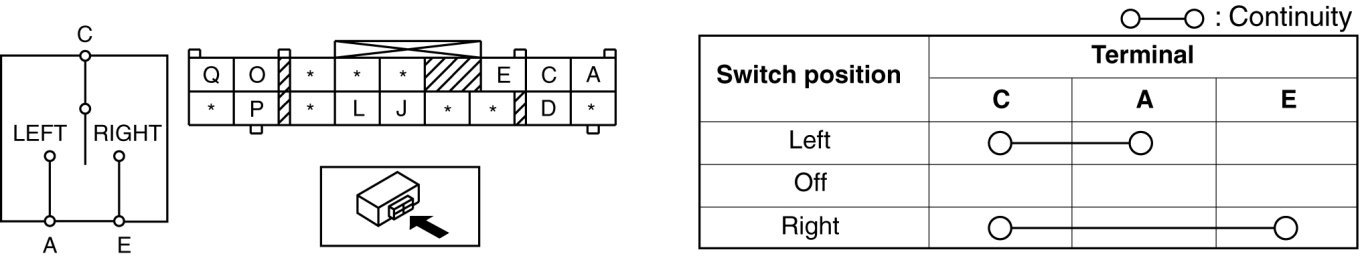

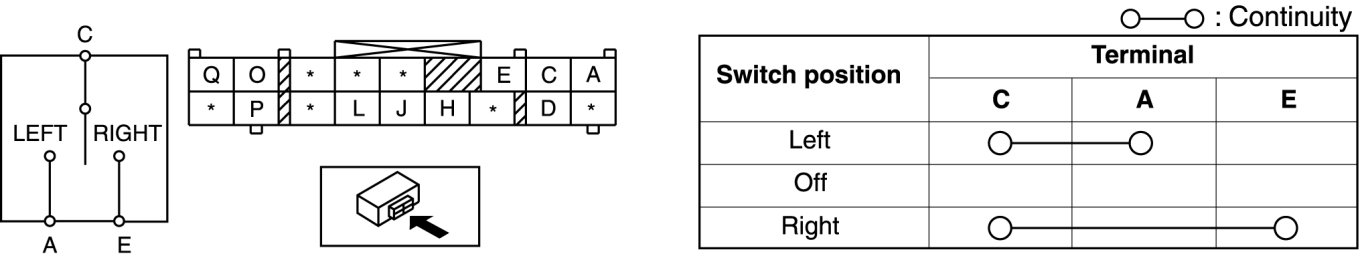

1. Verify that the continuity between the light switch terminals is as indicated in the table.

- If not as indicated in the table, replace the light switch.

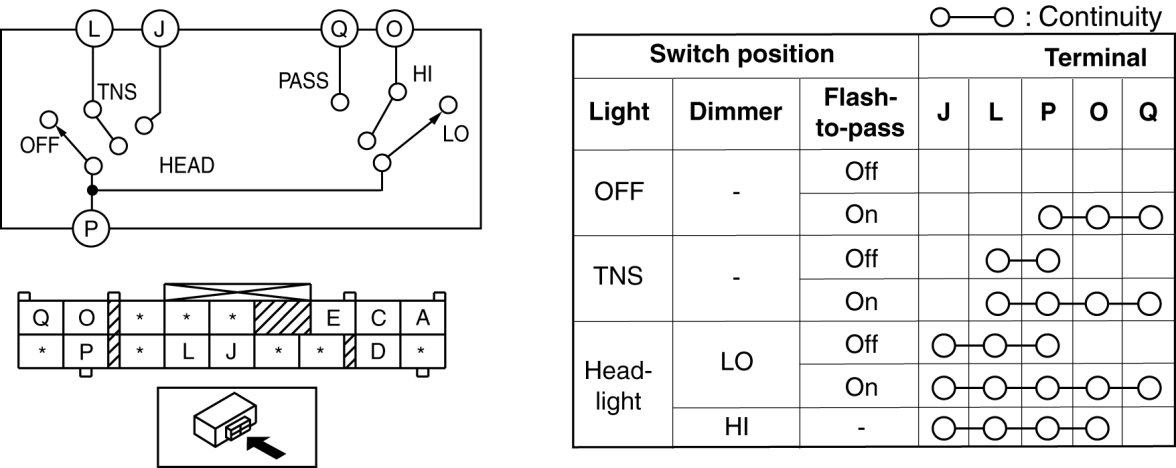

Vehicles Without Auto Light System

Headlight switch
