Mazda Truck
>>
2012
>>
CX-9 AWD V6-3.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Description and Operation
Lighting and Horns: Description and Operation

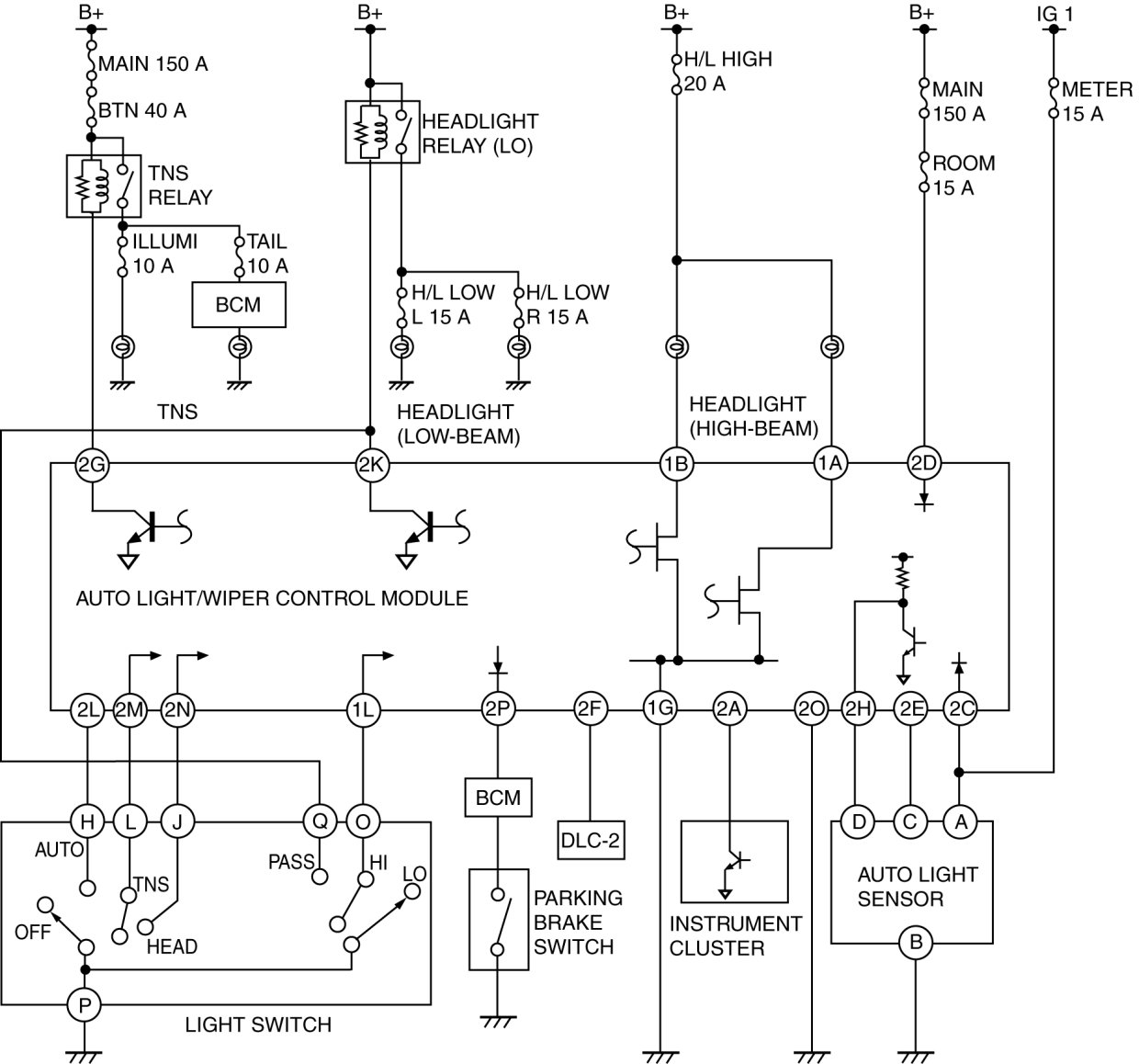

DRL AND AUTO LIGHT-OFF SYSTEM WIRING DIAGRAM
