Glove Box Lamp: Service and Repair

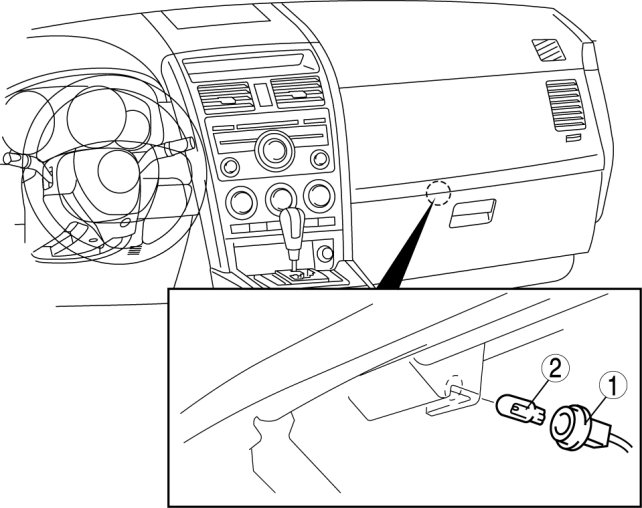

GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
