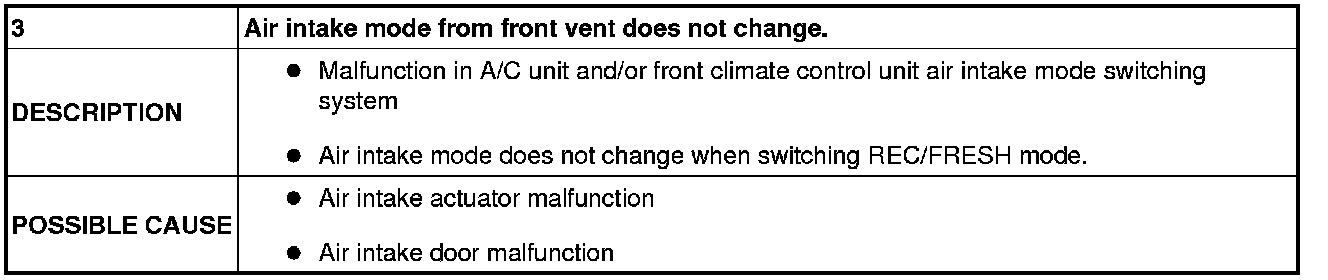

No. 3 Air Intake Mode From Front Vent Does Not Change

NO.3 AIR INTAKE MODE FROM FRONT VENT DOES NOT CHANGE





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, inspect to make sure connectors, terminals and wiring harness are connected correctly and undamaged.

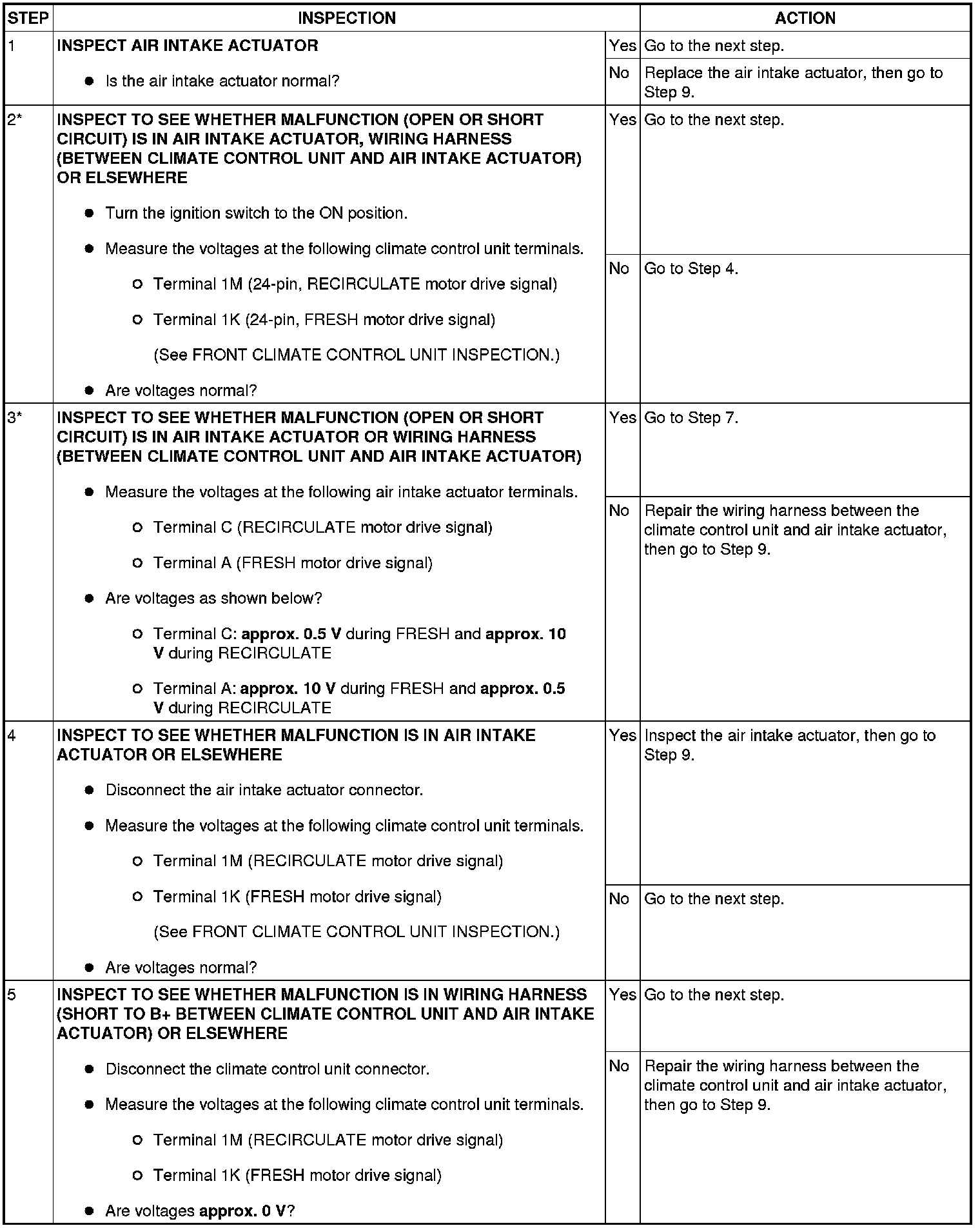

Diagnostic procedure
