Rear Evaporator Temperature Sensor Inspection

REAR EVAPORATOR TEMPERATURE SENSOR INSPECTION

1. Measure the temperature at the blower inlet.

2. Measure the resistance between the rear evaporator temperature sensor terminals.

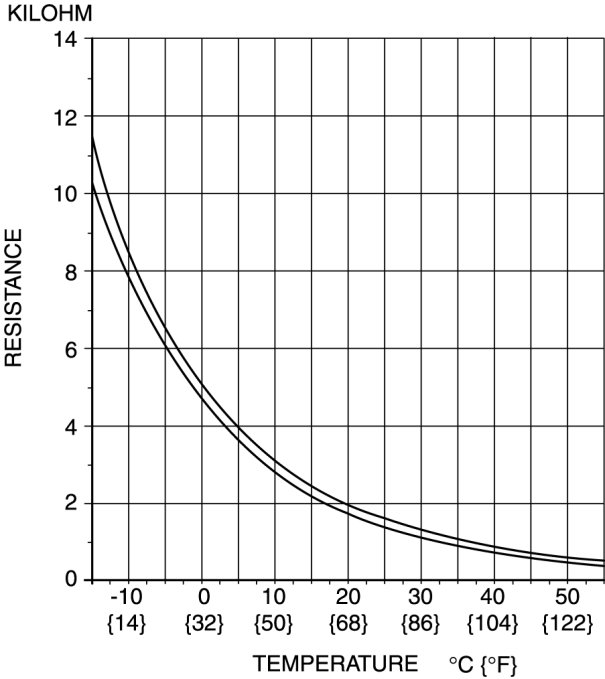

- If the resistance is not as shown in the graph, replace the rear evaporator temperature sensor.
