Engine Mount: Service and Repair

ENGINE MOUNT DISASSEMBLY/ASSEMBLY [MZI-3.7]

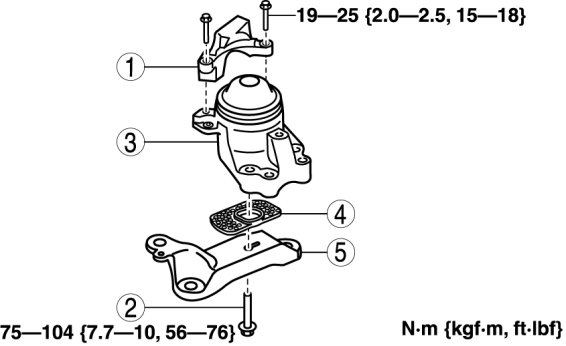

No.3 Engine Mount Disassembly/Assembly

CAUTION:
- For the No.3 engine mount rubber assembly, perform the bolt tightening work while verifying that the stopper is not pinched between the tightened surfaces.

1. Secure the No.3 engine mount bracket in a vise.

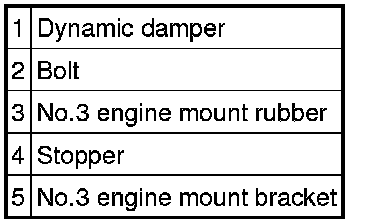

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

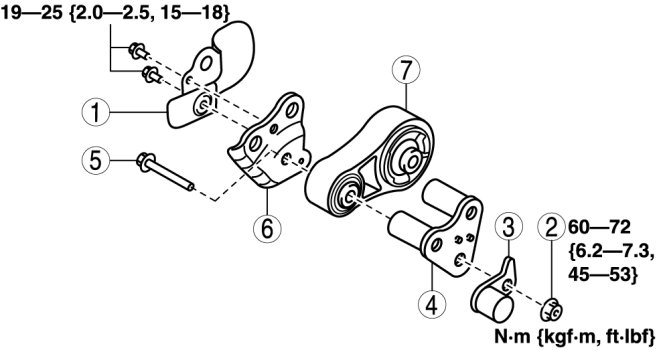

No.1 Engine Mount Disassembly/Assembly

1. Secure the No.1 engine mount rubber in a vise.

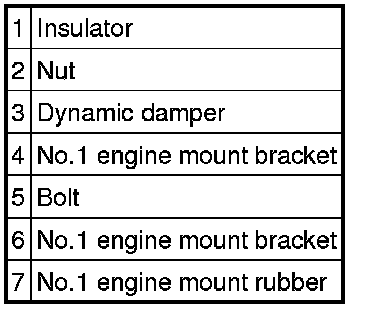

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.
